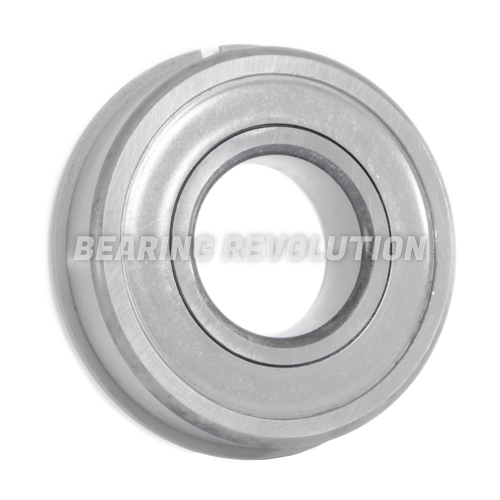

309 Z NR
DEEP GROOVE BALL BEARING WITH A 45MM BORE - STEEL CAGE - SELECT RANGE
Medium series maximum capacity single row deep groove ball bearing with one shield and a fitted snap ring from our Select range. 45mm ID, 100mm OD and 25mm width.
Also known as 1309 SL, 309 MFG, 309 WDG, 309-ZNR, 345 PK MAX, 8309 PSR, M 309 Z NR, M 309 Z NR, M 6309 KG, M 6309 Z NR, MT 4309 P
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£103.01 (£123.61 inc VAT)
- 5 - 9£97.86 (£117.43 inc VAT)
- 10 +£92.70 (£111.24 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 309 Z NR | |
| Reference | 309 Z NR |
| Brand | Select |
| Inside Diameter | 45mm |
| Outside Diameter | 100mm |
| Width | 25mm |
| Seals / Shields | One Shield |
| Snap Ring | Snap Ring |
| Weight (KG) | 0.942 |

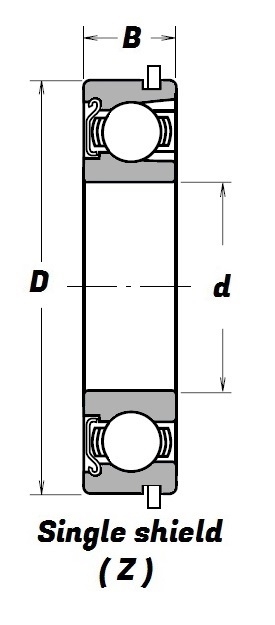

Schematic for 309 Z NR | |
| B | 25mm |
| d | 45mm |
| D | 100mm |
