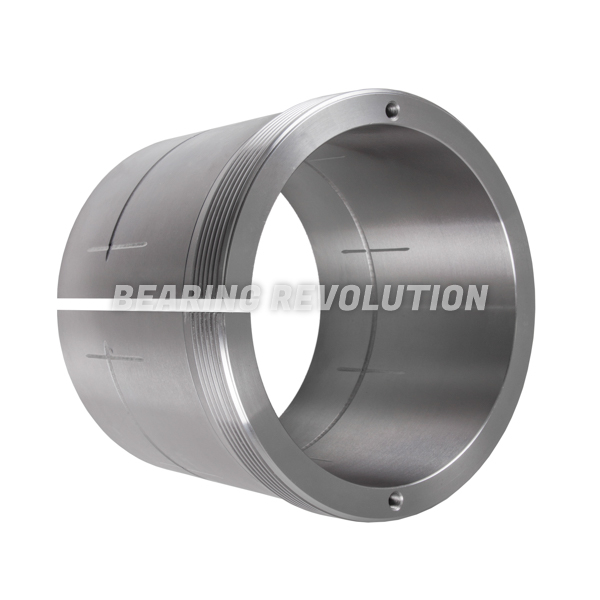

AOH 3156 260, WITHDRAWAL SLEEVE - PREMIUM
Withdrawal sleeve for oil injection with a 260mm bore suited to fit on a 280mm tapered shaft, from our Premium range. Applicable locking devices for this size would be HM 3160 or hydraulic nut HMV 60 E but must be ordered separately.
Also known as AOH 3156
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£2,421.70 (£2,906.04 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for AOH 3156 260, Withdrawal Sleeve - Premium | |
| Reference | AOH 3156 260 |
| Brand | Premium |
| Inside Diameter | 260mm |
| Outside Diameter | 280mm |
| Width | 175mm |
| Weight (KG) | 17 |

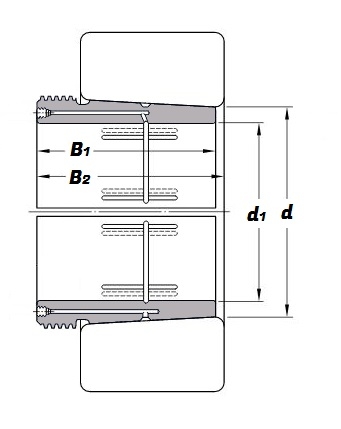

Schematic for AOH 3156 260, Withdrawal Sleeve - Premium | |
| B1 | 175mm |
| B2 | 183mm |
| d | 260mm |
| d1 | 280mm |
