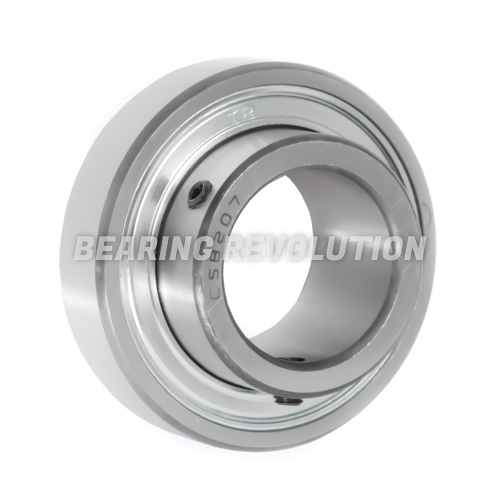

CSB 207
BEARING INSERT WITH A 35MM BORE - TR BRAND
Flat Back Bearing Insert with Parallel Outer and grub screws to allow tightening against the shaft, from our TR Range. ID 35mm, OD 72mm, width 17mm. These bearings can also be supplied complete with Housings in our Bearing Units section.
Also known as 1335 35, 133535, CSB207
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£18.66 (£22.39 inc VAT)
- 5 - 9£17.73 (£21.28 inc VAT)
- 10 +£16.78 (£20.14 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for CSB 207 | |
| Reference | 1335 35 |
| Brand | Budget |
| Inside Diameter | 35mm |
| Outside Diameter | 72mm |
| Width | 17mm |
| Dyn | 25700 |
| Stat | 15200 |
| Type | Grub Screw Lock |
| Weight (KG) | 0.43 |

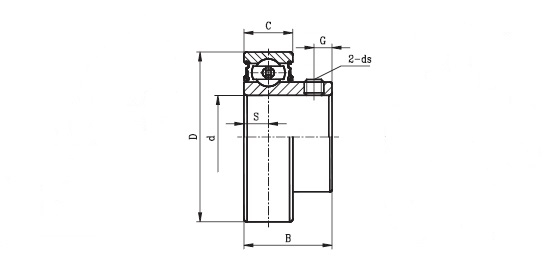

Schematic for CSB 207 | |
| B | 32mm |
| C | 17mm |
| d | 35mm |
| D | 72mm |
| ds | M6x1 |
| G | 6.5mm |
| h | 5.7mm |
| KG | 0.43 |
| S | 8.5mm |
