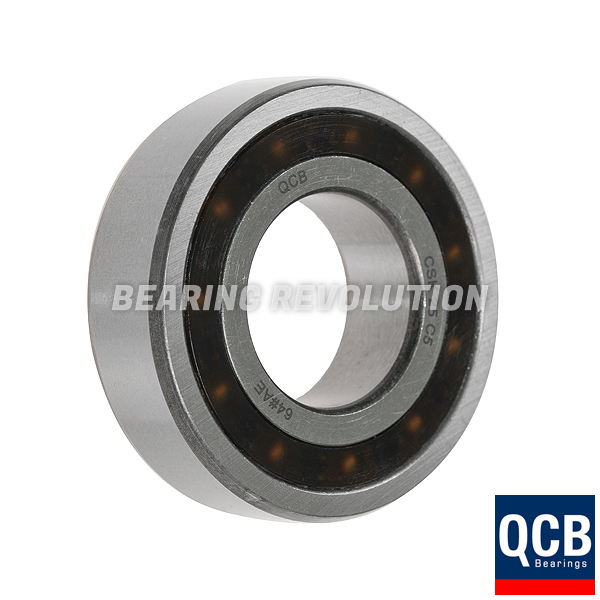

CSK 15 C5, ONE WAY CLUTCH BEARING WITH A 15MM BORE - SELECT RANGE

Name: CSK 15 C5, One Way Clutch Bearing with a 15mm bore - Select range
Brand: Select
Price: 50.50 GBP
Availability: InStock

BR Stock No. S-CSK 15 C5 | Brand: Select | Mfr. Part No. CSK 15 C5

Sprag type freewheel one way clutch bearing. 15mm bore, 35mm OD, 11mm width.

Also known as KK 15, CSK15C5

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£42.08 (£50.50 inc VAT)
Bulk Order PricesENQUIRE

CSK 15 C5, One Way Clutch Bearing with a 15mm bore - Select range Schematic

Specifications for CSK 15 C5, One Way Clutch Bearing with a 15mm bore - Select range
Reference	CSK 15 C5
Brand	Select
Inside Diameter	15mm
Outside Diameter	35mm
Width	11mm
Keyway	No keyway
Weight (KG)	0.06

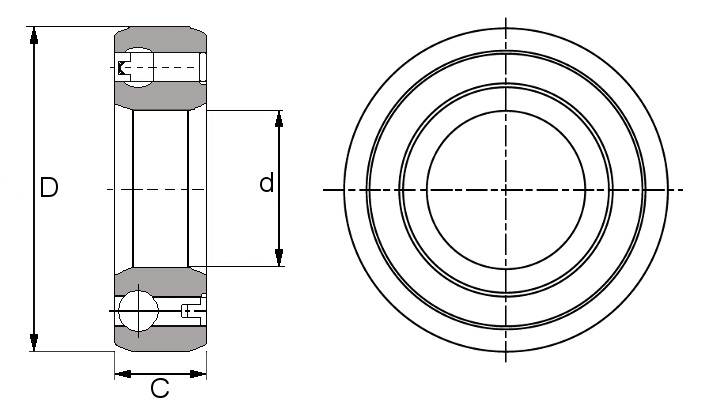

Schematic for CSK 15 C5, One Way Clutch Bearing with a 15mm bore - Select range
C	11mm
d	15mm
D	35mm
