Please note photos are for illustration purposes only

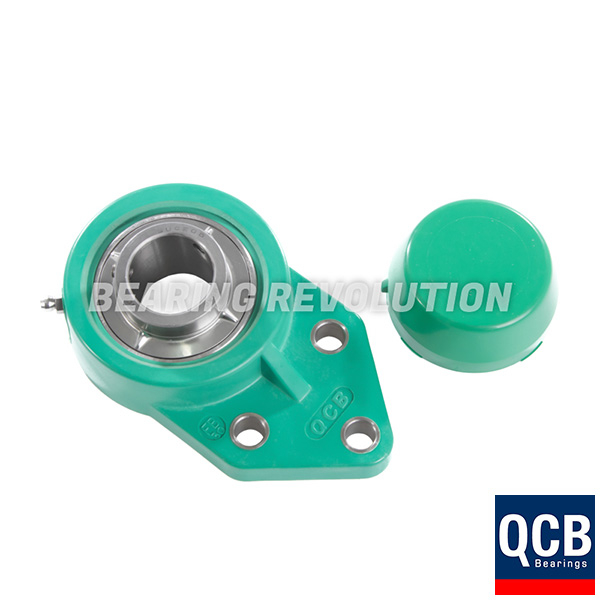

FBL 204 12 S/S N6 GRN, GREEN THERMOPLASTIC FLANGE BRACKET UNIT WITH A 3/4 INCH BORE - SELECT RANGE

Name: FBL 204 12 S/S N6 GRN, Green Thermoplastic Flange Bracket Unit with a 3/4 inch bore - Select Range
Brand: Select
Price: 102.17 GBP
Availability: InStock

BR Stock No. S-FBL 204 12 S/S N6 GRN | Brand: Select | Mfr. Part No. FBL 204 12 S/S N6 GRN

Imperial UCFB type Green Thermoplastic Flange Bracket Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£85.14 (£102.17 inc VAT)
5 - 9£80.89 (£97.07 inc VAT)
10 +£76.63 (£91.96 inc VAT)
Bulk Order PricesENQUIRE

FBL 204 12 S/S N6 GRN, Green Thermoplastic Flange Bracket Unit with a 3/4 inch bore - Select Range Schematic

Specifications for FBL 204 12 S/S N6 GRN, Green Thermoplastic Flange Bracket Unit with a 3/4 inch bore - Select Range
Reference	FBL 204 12 S/S N6 GRN
Brand	Select
Inside Diameter	.3/4"
Bolt	M10
Max Torque	18Nm
Weight (KG)	0.23

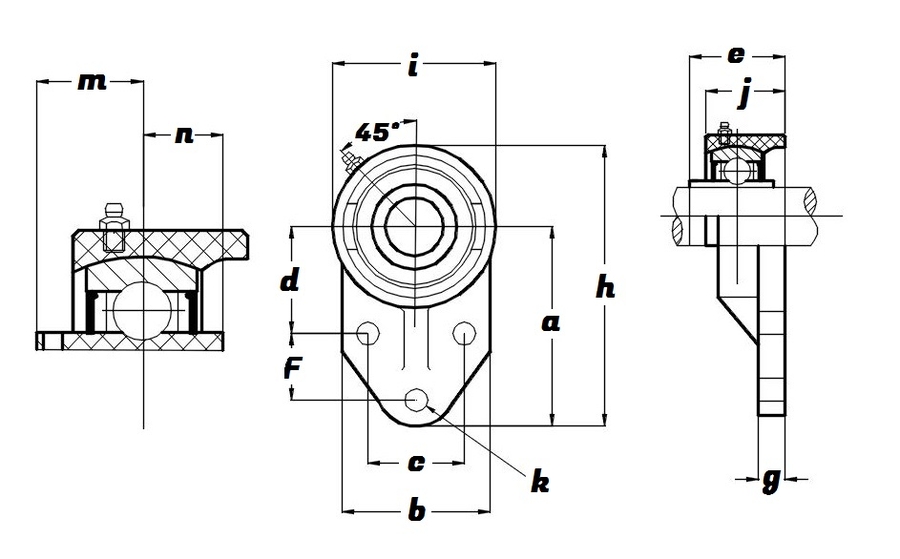

Schematic for FBL 204 12 S/S N6 GRN, Green Thermoplastic Flange Bracket Unit with a 3/4 inch bore - Select Range
a	76.2mm
b	62mm
c	38.1mm
d	42.9mm
e	33.7mm
f	22.2mm
g	11.4mm
h	108mm
i	63.5mm
j	26.5mm
k	10.7mm
KG	0.23
m	18.3mm
n	12.7mm
