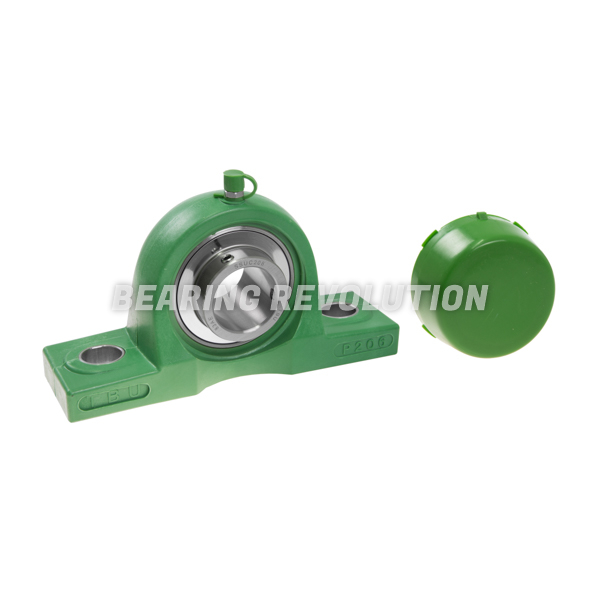

PPL 205 S/S N 6 GRN, GREEN THERMOPLASTIC PILLOW BLOCK HOUSING UNIT WITH A 25MM BORE - BUDGET RANGE
Metric NP - UCP type Green Thermoplastic Pillow Block Housing Unit complete with Stainless Steel insert filled with food grade grease from our Budget range.
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£36.40 (£43.68 inc VAT)
- 5 - 9£34.58 (£41.50 inc VAT)
- 10 +£32.76 (£39.31 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for PPL 205 S/S N 6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 25mm bore - Budget Range | |
| Reference | PPL 205 S/S N 6 GRN |
| Brand | Budget |
| Inside Diameter | 25mm |
| Bolt | M10 |
| Max Torque | 25Nm |
| Weight (KG) | 0.31 |
Schematic for PPL 205 S/S N 6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 25mm bore - Budget Range | |
| a | 140.5mm |
| b | 38mm |
| Bi | 34mm |
| e | 105mm |
| g | 14.5mm |
| h | 36.5mm |
| KG | 0.31 |
| n | 14.3mm |
| s1 | 11mm |
| S1 | 14mm |
| w | 71mm |
