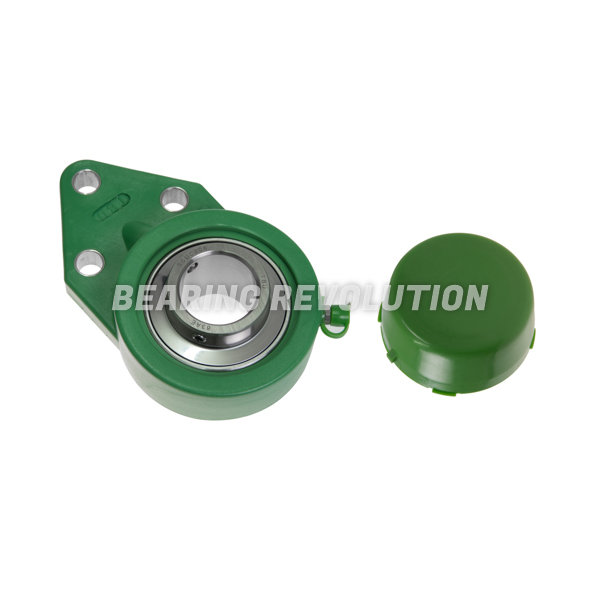

FBL 205 S/S N 6 GRN, GREEN THERMOPLASTIC FLANGE BRACKET UNIT WITH A 25MM BORE - BUDGET RANGE

Name: FBL 205 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 25mm bore - Budget Range
Brand: Budget
Price: 61.66 GBP
Availability: InStock

BR Stock No. B-FBL 205 S/S N 6 GRN | Brand: Budget | Mfr. Part No. FBL 205 S/S N 6 GRN

Metric UCFB type Green Thermoplastic Flange Bracket Unit complete with Stainless Steel insert filled with food grade grease from our Budget range.

Our budget range is manufactured to International standards and represents great value for money.

UnitsPer unit
1 - 4£51.38 (£61.66 inc VAT)
5 - 9£48.81 (£58.57 inc VAT)
10 +£46.24 (£55.49 inc VAT)
Bulk Order PricesENQUIRE

FBL 205 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 25mm bore - Budget Range Schematic

Specifications for FBL 205 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 25mm bore - Budget Range
Reference	FBL 205 S/S N 6 GRN
Brand	Budget
Inside Diameter	25mm
Bolt	M10
Max Torque	25Nm
Weight (KG)	0.29

Schematic for FBL 205 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 25mm bore - Budget Range
a	85.7mm
b	63.5mm
c	41.3mm
d	46mm
e	41.2mm
f	28.6mm
g	11.4mm
h	120.6mm
i	70mm
j	34mm
k	10.7mm
KG	0.29
m	19.7mm
n	14.3mm
