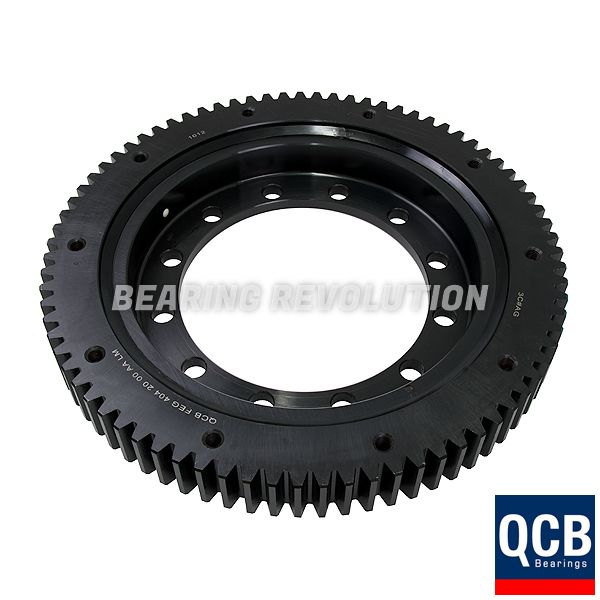

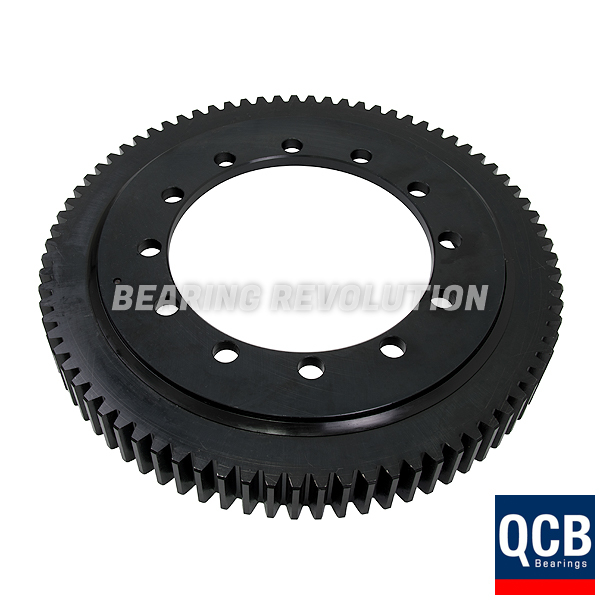

FEG 505 20 00 AA LM, EXTERNALLY GEARED SLEWING RING - SELECT RANGE
FEG 20 Metric - Flanged Light Series of Externally Geared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.
Also known as E 505 20 00 C, VLA 20 0414 N, 21.0411.01.ZZ.00, 231.20.0400.013, 21/520 1, FEG5052000AALM, E.505.20.00.C
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1+£795.42 (£954.50 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FEG 505 20 00 AA LM, Externally Geared Slewing Ring - Select Range | |
| Reference | FEG 505 20 00 AA LM |
| Brand | Select |
| Weight (KG) | 32 |

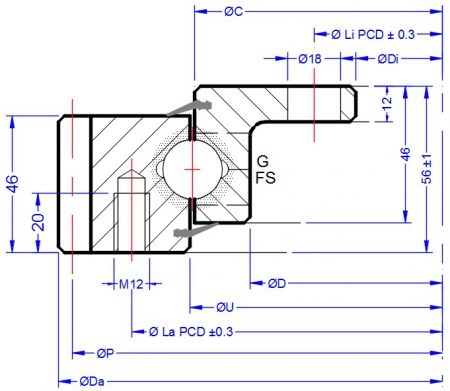

Schematic for FEG 505 20 00 AA LM, Externally Geared Slewing Ring - Select Range | |
| C | 412.5mm |
| D | 375mm |
| Da | 504mm |
| Di | 304mm |
| La | 455mm |
| Li | 332mm |
| m | 5 |
| Na | 10 |
| Ni | 12 |
| P | 495mm |
| U | 415.5mm |
| z | 99 |
