FEG 850 20 00 AA LM, EXTERNALLY GEARED SLEWING RING - SELECT RANGE
FEG 20 Metric - Flanged Light Series of Externally Geared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.
Also known as E 850 20 00 C, VLA 20 0744 N, 21.0741.01.ZZ.00, 231.20.0700.013, 21/850 1, FEG8502000AALM, E.850.20.00.C
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1+£1,419.12 (£1,702.94 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FEG 850 20 00 AA LM, Externally Geared Slewing Ring - Select Range | |
| Reference | FEG 850 20 00 AA LM |
| Brand | Select |
| Weight (KG) | 53 |

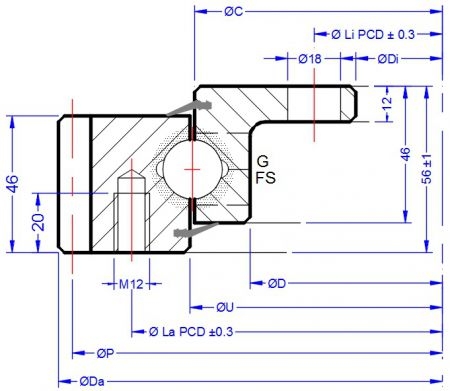

Schematic for FEG 850 20 00 AA LM, Externally Geared Slewing Ring - Select Range | |
| C | 742.5mm |
| D | 705mm |
| Da | 838mm |
| Di | 634mm |
| La | 785mm |
| Li | 662mm |
| m | 6 |
| Na | 18 |
| Ni | 16 |
| P | 828mm |
| U | 745.5mm |
| z | 138 |
