FIG 418 20 00 AA LM, INTERNALLY GEARED SLEWING RING - SELECT RANGE

Name: FIG 418 20 00 AA LM, Internally Geared Slewing Ring - Select Range
Brand: Select
Price: 890.35 GBP
Availability: InStock

BR Stock No. S-FIG 418 20 00 AA LM | Brand: Select | Mfr. Part No. FIG 418 20 00 AA LM

FIG 20 Metric - Flanged Light Series of Internally Geared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.

Also known as FIG4182000AALM

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£741.96 (£890.35 inc VAT)
Bulk Order PricesENQUIRE

FIG 418 20 00 AA LM, Internally Geared Slewing Ring - Select Range Schematic

Specifications for FIG 418 20 00 AA LM, Internally Geared Slewing Ring - Select Range
Reference	FIG 418 20 00 AA LM
Brand	Select

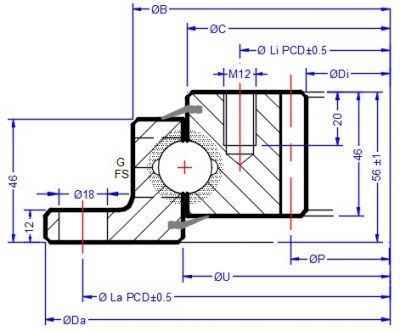

Schematic for FIG 418 20 00 AA LM, Internally Geared Slewing Ring - Select Range
B	353mm
C	312.5mm
Da	418mm
Di	226.5mm
La	390mm
Li	275mm
m	5
Na	8
Ni	12
P	235mm
U	315.5mm
z	47
