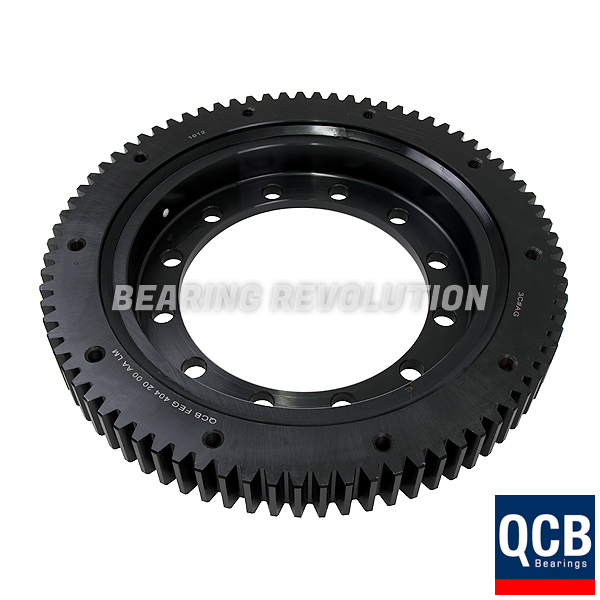

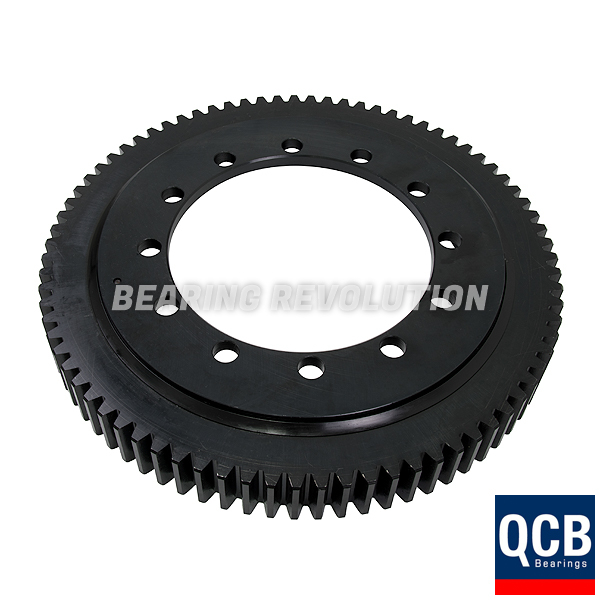

FEG 950 20 00 AA LM, EXTERNALLY GEARED SLEWING RING - SELECT RANGE
FEG 20 Metric - Flanged Light Series of Externally Geared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.
Also known as E 950 20 00 C, VLA 20 0844 N, 21.0841.01.ZZ.00, 231.20.0800.013, 21/950 1, FEG9502000AALM, E.950.20.00.C
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1+£1,668.60 (£2,002.32 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FEG 950 20 00 AA LM, Externally Geared Slewing Ring - Select Range | |
| Reference | FEG 950 20 00 AA LM |
| Brand | Select |
| Weight (KG) | 64 |

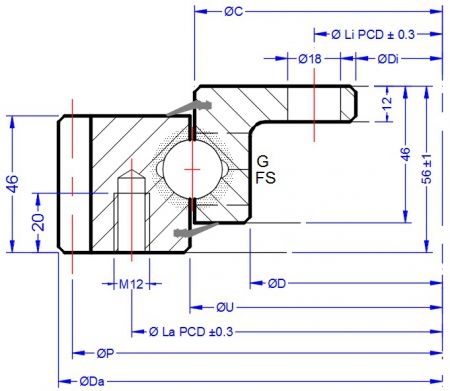

Schematic for FEG 950 20 00 AA LM, Externally Geared Slewing Ring - Select Range | |
| C | 842.5mm |
| D | 805mm |
| Da | 950mm |
| Di | 734mm |
| La | 885mm |
| Li | 762mm |
| m | 8 |
| Na | 18 |
| Ni | 18 |
| P | 936mm |
| U | 845.5mm |
| z | 117 |
