FIG 850 20 00 AA LM, Internally Geared Slewing Ring - Select Range

FIG 850 20 00 AA LM, Internally Geared Slewing Ring - Select Range 2

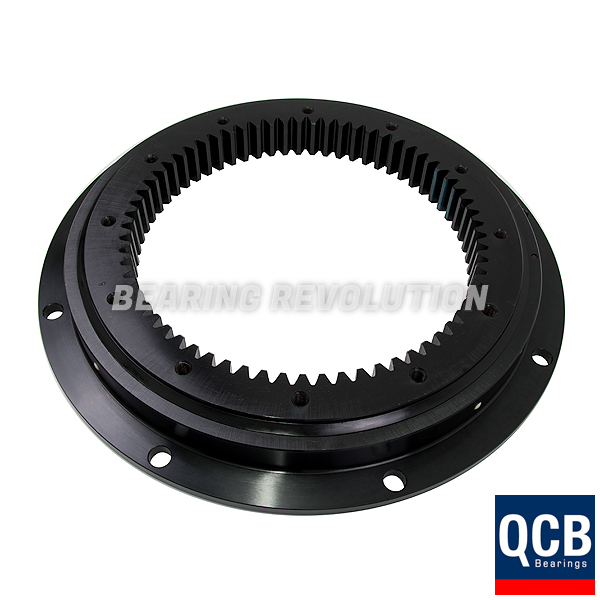

Please note photos are for illustration purposes only

FIG 850 20 00 AA LM, INTERNALLY GEARED SLEWING RING - SELECT RANGE

Name: FIG 850 20 00 AA LM, Internally Geared Slewing Ring - Select Range
Brand: Select
Price: 1,702.94 GBP
Availability: InStock

BR Stock No. S-FIG 850 20 00 AA LM | Brand: Select | Mfr. Part No. FIG 850 20 00 AA LM

FIG 20 Metric - Flanged Light Series of Internally Geared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.

Also known as I 850 20 00 C, VLI 20 0744 N, 22.0741.01.ZZ.00, 232.20.0700.013, 21/850 2, FIG8502000AALM, I.850.20.00.C

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£1,419.12 (£1,702.94 inc VAT)
Bulk Order PricesENQUIRE

FIG 850 20 00 AA LM, Internally Geared Slewing Ring - Select Range Schematic

Specifications for FIG 850 20 00 AA LM, Internally Geared Slewing Ring - Select Range
Reference	FIG 850 20 00 AA LM
Brand	Select

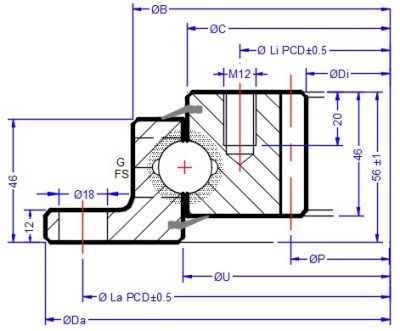

Schematic for FIG 850 20 00 AA LM, Internally Geared Slewing Ring - Select Range
B	783mm
C	742.5mm
Da	848mm
Di	649.2mm
La	820mm
Li	705mm
m	6
Na	12
Ni	20
P	660mm
U	745.5mm
z	110
