FIG 750 20 00 AA LM, Internally Geared Slewing Ring - Select Range

FIG 750 20 00 AA LM, Internally Geared Slewing Ring - Select Range 2

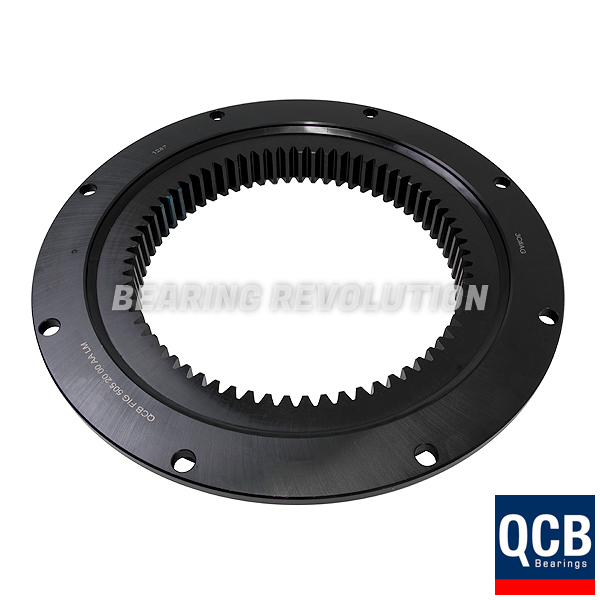

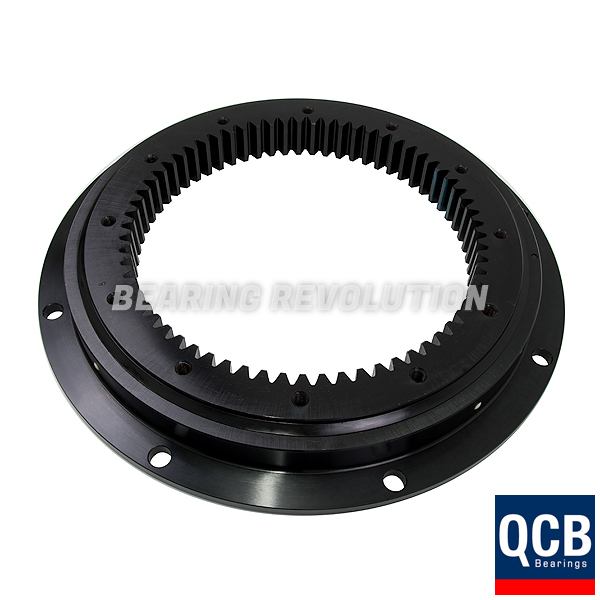

Please note photos are for illustration purposes only

FIG 750 20 00 AA LM, INTERNALLY GEARED SLEWING RING - SELECT RANGE

Name: FIG 750 20 00 AA LM, Internally Geared Slewing Ring - Select Range
Brand: Select
Price: 1,502.71 GBP
Availability: InStock

BR Stock No. S-FIG 750 20 00 AA LM | Brand: Select | Mfr. Part No. FIG 750 20 00 AA LM

FIG 20 Metric - Flanged Light Series of Internally Geared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.

Also known as I 750 20 00 C, VLI 20 0644 N, 22.0641.01.ZZ.00, 232.20.0600.013, 21/750 2, FIG7502000AALM, I.750.20.00.C

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£1,252.26 (£1,502.71 inc VAT)
Bulk Order PricesENQUIRE

FIG 750 20 00 AA LM, Internally Geared Slewing Ring - Select Range Schematic

Specifications for FIG 750 20 00 AA LM, Internally Geared Slewing Ring - Select Range
Reference	FIG 750 20 00 AA LM
Brand	Select

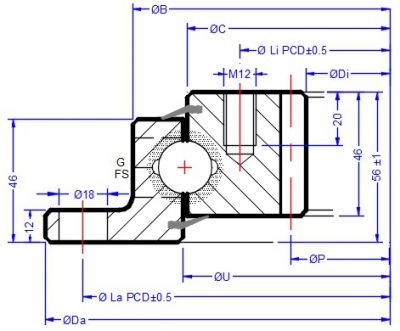

Schematic for FIG 750 20 00 AA LM, Internally Geared Slewing Ring - Select Range
B	683mm
C	642.5mm
Da	748mm
Di	547.2mm
La	720mm
Li	605mm
m	6
Na	12
Ni	18
P	558mm
U	645.5mm
z	93
