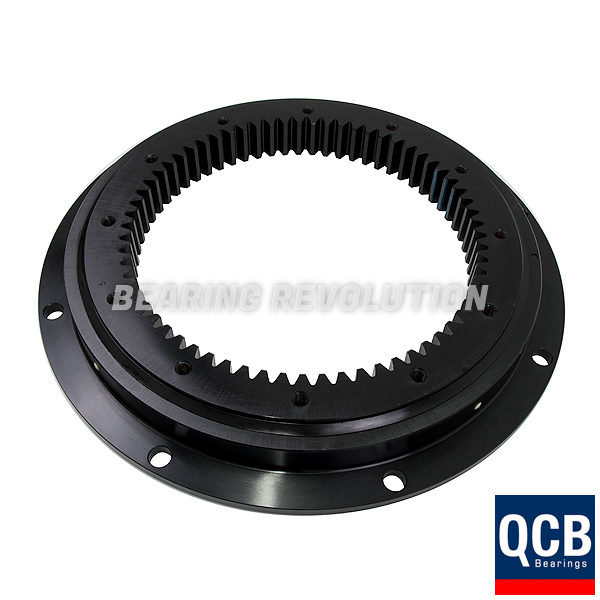

Please note photos are for illustration purposes only

FIG 950 20 00 AA LM, INTERNALLY GEARED SLEWING RING - SELECT RANGE

Name: FIG 950 20 00 AA LM, Internally Geared Slewing Ring - Select Range
Brand: Select
Price: 2,002.32 GBP
Availability: InStock

BR Stock No. S-FIG 950 20 00 AA LM | Brand: Select | Mfr. Part No. FIG 950 20 00 AA LM

FIG 20 Metric - Flanged Light Series of Internally Geared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.

Also known as I 950 20 00 C, VLI 20 0844 N, 22.0841.01.ZZ.00, 232.20.0800.013, 21/950 2, FIG9502000AALM, I.950.20.00.C

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1+£1,668.60 (£2,002.32 inc VAT)
Bulk Order PricesENQUIRE

FIG 950 20 00 AA LM, Internally Geared Slewing Ring - Select Range Schematic

Specifications for FIG 950 20 00 AA LM, Internally Geared Slewing Ring - Select Range
Reference	FIG 950 20 00 AA LM
Brand	Select

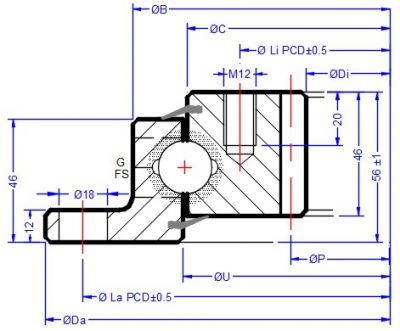

Schematic for FIG 950 20 00 AA LM, Internally Geared Slewing Ring - Select Range
B	883mm
C	842.5mm
Da	948mm
Di	737.6mm
La	920mm
Li	805mm
m	8
Na	14
Ni	20
P	752mm
U	845.5mm
z	94
