Please note photos are for illustration purposes only

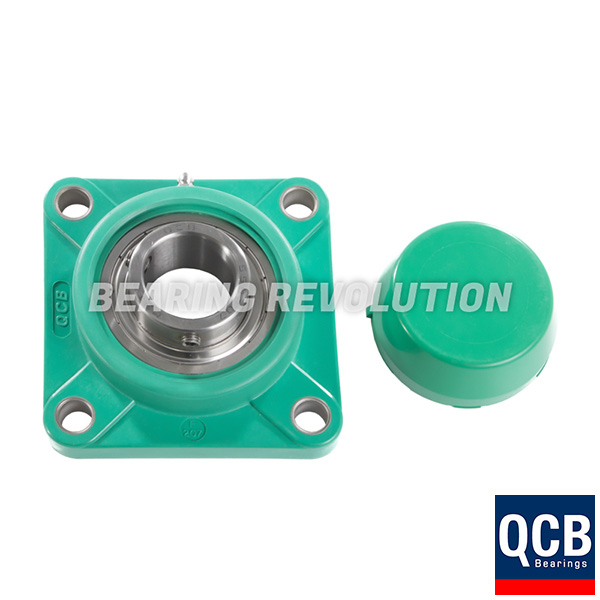

FPL 204 12 S/S N6A GRN, GREEN THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A .3/4 INCH BORE - SELECT RANGE

Name: FPL 204 12 S/S N6A GRN, Green Thermoplastic Square Flange Housing Unit with a .3/4 inch bore - Select Range
Brand: Select
Price: 84.11 GBP
Availability: InStock

BR Stock No. S-FPL 204 12 S/S N6A GRN | Brand: Select | Mfr. Part No. FPL 204 12 S/S N6A GRN

Imperial SF - UCF type Green Thermoplastic Square Flange Housing Unit with Flat Back Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£70.09 (£84.11 inc VAT)
5 - 9£66.61 (£79.93 inc VAT)
10 +£63.11 (£75.73 inc VAT)
Bulk Order PricesENQUIRE

FPL 204 12 S/S N6A GRN, Green Thermoplastic Square Flange Housing Unit with a .3/4 inch bore - Select Range Schematic

Specifications for FPL 204 12 S/S N6A GRN, Green Thermoplastic Square Flange Housing Unit with a .3/4 inch bore - Select Range
Reference	FPL 204 12 S/S N6A GRN
Brand	Select
Inside Diameter	.3/4"
Bolt	M10
Max Torque	18Nm
Weight (KG)	0.25

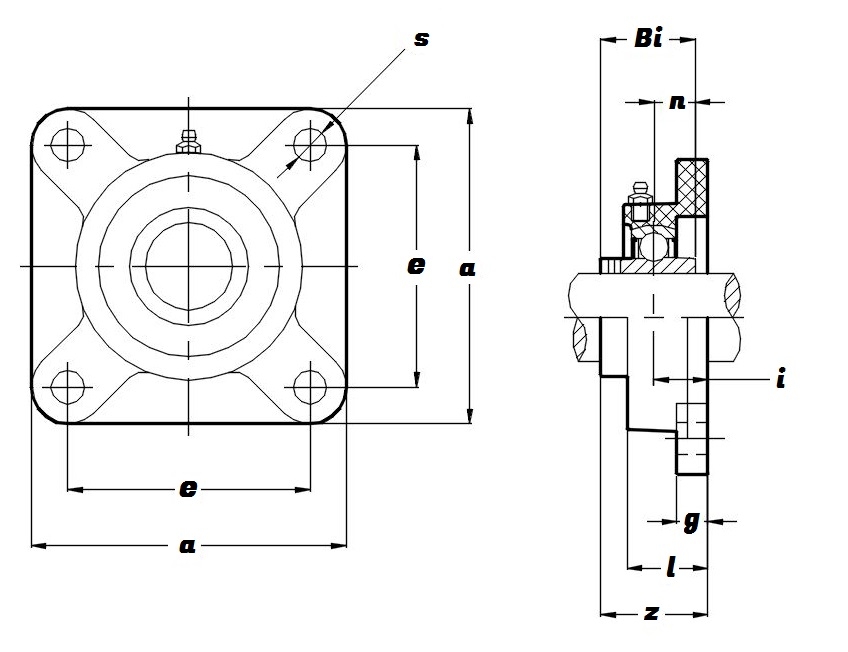

Schematic for FPL 204 12 S/S N6A GRN, Green Thermoplastic Square Flange Housing Unit with a .3/4 inch bore - Select Range
a	86mm
Bi	31mm
e	63.5mm
g	13.4mm
i	18mm
KG	0.25
l	27.8mm
n	12.7mm
s	11mm
z	36.3mm
