Please note photos are for illustration purposes only

FPL 204 S/S N 6 GRN, GREEN THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A 20MM BORE - BUDGET RANGE

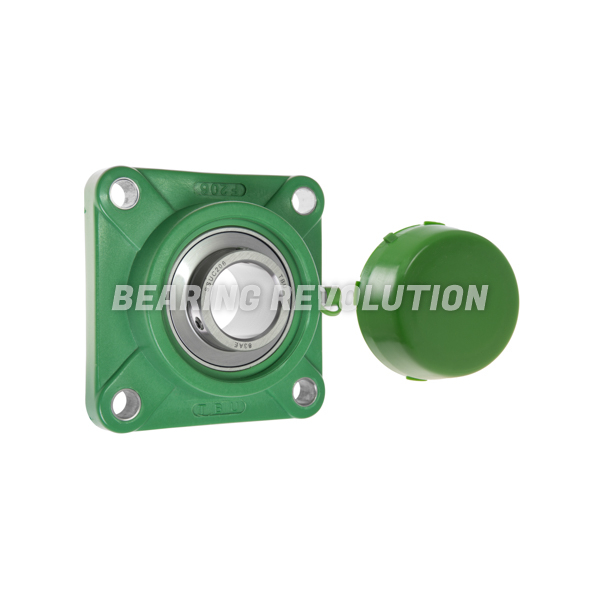

Name: FPL 204 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 20mm bore - Budget Range
Brand: Budget
Price: 38.47 GBP
Availability: InStock

BR Stock No. B-FPL 204 S/S N 6 GRN | Brand: Budget | Mfr. Part No. FPL 204 S/S N 6 GRN

Metric SF - UCF type Green Thermoplastic Square Flange Housing Unit complete with Stainless Steel insert filled with food grade grease from our Budget range.

Our budget range is manufactured to International standards and represents great value for money.

UnitsPer unit
1 - 4£32.06 (£38.47 inc VAT)
5 - 9£30.45 (£36.54 inc VAT)
10 +£28.86 (£34.63 inc VAT)
Bulk Order PricesENQUIRE

FPL 204 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 20mm bore - Budget Range Schematic

Specifications for FPL 204 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 20mm bore - Budget Range
Reference	FPL 204 S/S N 6 GRN
Brand	Budget
Inside Diameter	20mm
Bolt	M10
Max Torque	18Nm
Weight (KG)	0.25

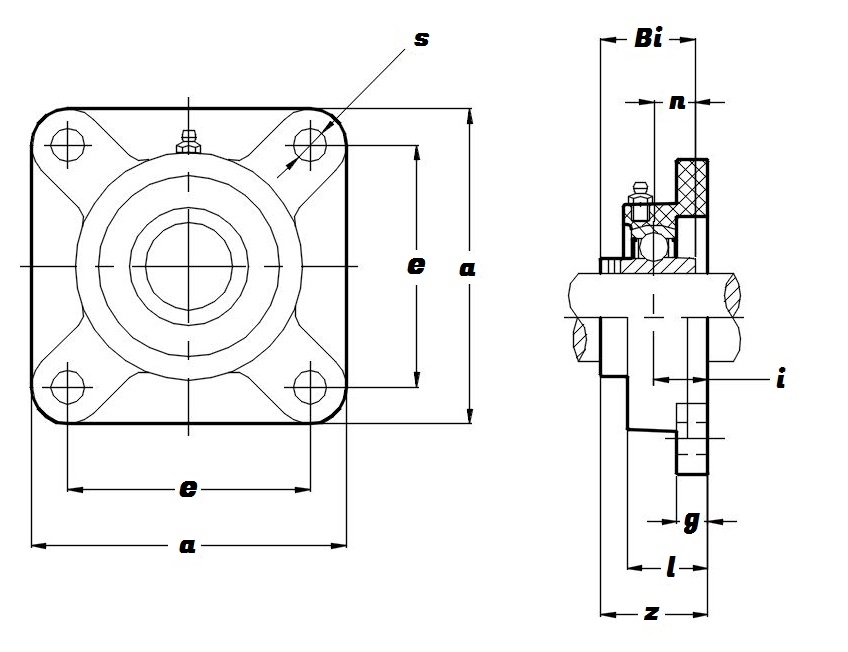

Schematic for FPL 204 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 20mm bore - Budget Range
a	86mm
Bi	31mm
e	63.5mm
g	13.4mm
i	18mm
KG	0.25
l	27.8mm
n	12.7mm
s	11mm
z	36.3mm
