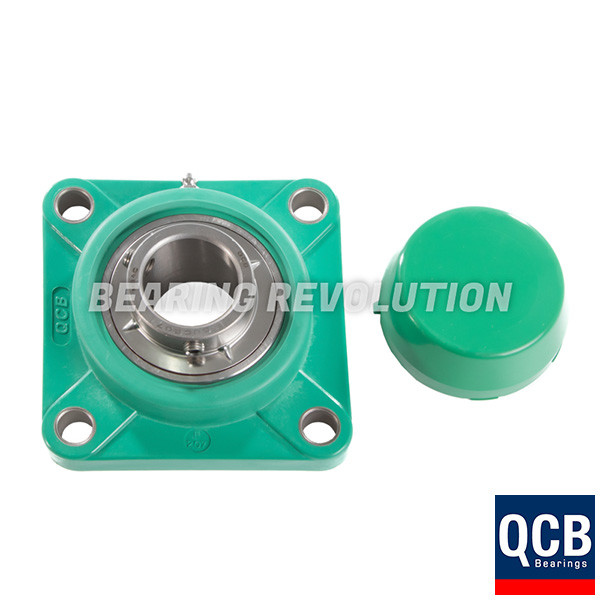

FPL 209 S/S N 6 GRN, GREEN THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A 45 BORE - SELECT RANGE

Name: FPL 209 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 45 bore - Select Range
Brand: Select
Price: 191.66 GBP
Availability: InStock

BR Stock No. S-FPL 209 S/S N 6 GRN | Brand: Select | Mfr. Part No. FPL 209 S/S N 6 GRN

Metric SF - UCF type Green Thermoplastic Square Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£159.72 (£191.66 inc VAT)
5 - 9£151.73 (£182.08 inc VAT)
10 +£143.75 (£172.50 inc VAT)
Bulk Order PricesENQUIRE

FPL 209 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 45 bore - Select Range Schematic

Specifications for FPL 209 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 45 bore - Select Range
Reference	FPL 209 S/S N 6 GRN
Brand	Select
Inside Diameter	45mm
Bolt	M16
Max Torque	45Nm
Weight (KG)	1.15

Schematic for FPL 209 S/S N 6 GRN, Green Thermoplastic Square Flange Housing Unit with a 45 bore - Select Range
a	137mm
Bi	49.2mm
e	105mm
g	19mm
i	24mm
KG	1.15
l	41mm
n	19mm
s	17mm
z	54.2mm
