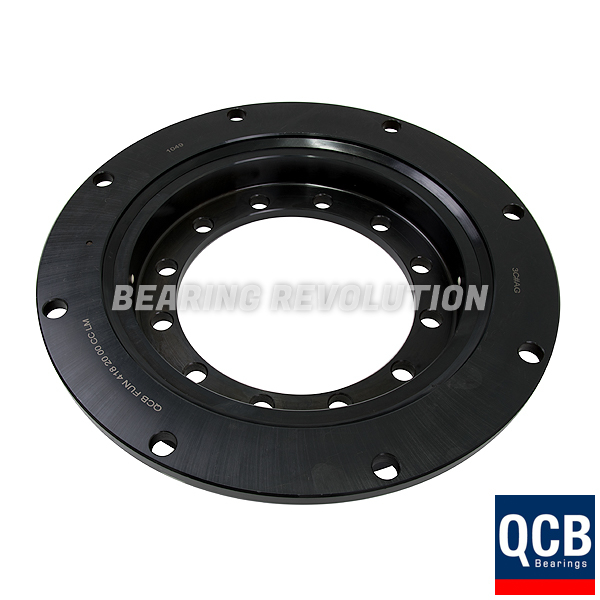

FUN 1050 20 00 AA LM, UNGEARED SLEWING RING - SELECT RANGE
FUN 20 Metric - Flanged Light Series of Ungeared Slewing Rings from our Select Range - Please refer to downloadable content on link below image for full series specifications.
Also known as SD 1050 20 00 C, VLU 20 0944 N, 23.0941.01.ZZ.00, 230.20.0900.013, 21/1050.0, FUN10502000CCLM, SD.1050.20.00.C
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1+£1,794.96 (£2,153.95 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FUN 1050 20 00 AA LM, Ungeared Slewing Ring - Select Range | |
| Reference | FUN 1050 20 00 AA LM |
| Brand | Select |

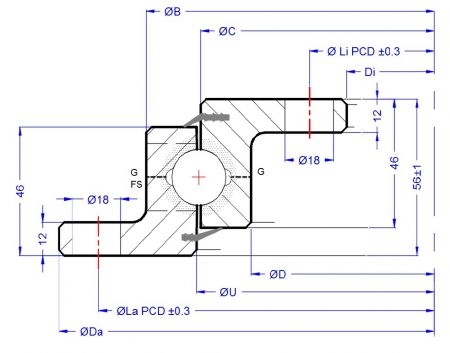

Schematic for FUN 1050 20 00 AA LM, Ungeared Slewing Ring - Select Range | |
| B | 983mm |
| C | 942.5mm |
| D | 905mm |
| Da | 1048mm |
| Di | 834mm |
| La | 1020mm |
| Li | 862mm |
| Na | 16 |
| Ni | 20 |
| U | 945.5mm |
