HPL 203 S/S N 6 GRN, GREEN THERMOPLASTIC HANGER HOUSING UNIT WITH A 17 BORE - SELECT RANGE

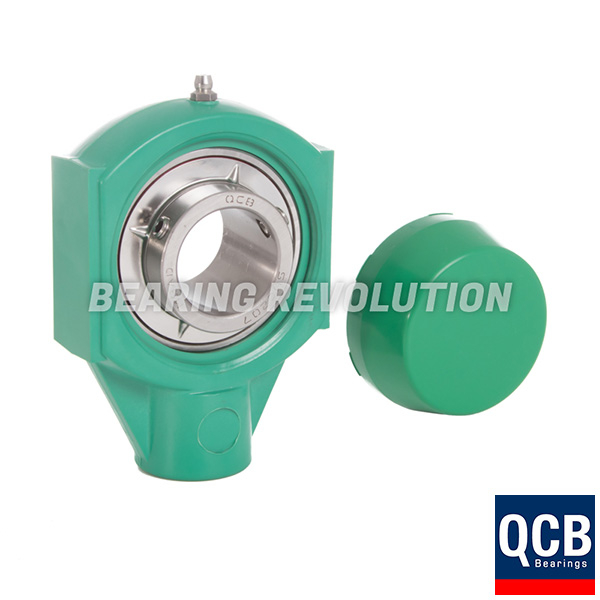

Name: HPL 203 S/S N 6 GRN, Green Thermoplastic Hanger Housing Unit with a 17 bore - Select Range
Brand: Select
Price: 91.42 GBP
Availability: InStock

BR Stock No. S-HPL 203 S/S N 6 GRN | Brand: Select | Mfr. Part No. HPL 203 S/S N 6 GRN

Metric Green Thermoplastic Hanger Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£76.18 (£91.42 inc VAT)
5 - 9£72.36 (£86.83 inc VAT)
10 +£68.57 (£82.28 inc VAT)
Bulk Order PricesENQUIRE

HPL 203 S/S N 6 GRN, Green Thermoplastic Hanger Housing Unit with a 17 bore - Select Range Schematic

Specifications for HPL 203 S/S N 6 GRN, Green Thermoplastic Hanger Housing Unit with a 17 bore - Select Range
Reference	HPL 203 S/S N 6 GRN
Brand	Select
Inside Diameter	17mm
Weight (KG)	0.28

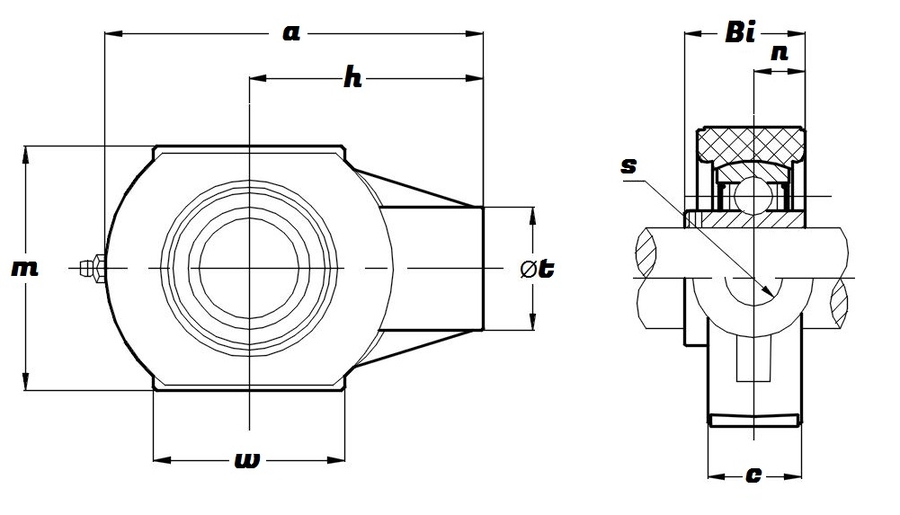

Schematic for HPL 203 S/S N 6 GRN, Green Thermoplastic Hanger Housing Unit with a 17 bore - Select Range
a	99mm
Bi	31mm
c	27.5mm
h	63.5mm
KG	0.28
m	65mm
n	12.7mm
t	36mm
w	47mm
