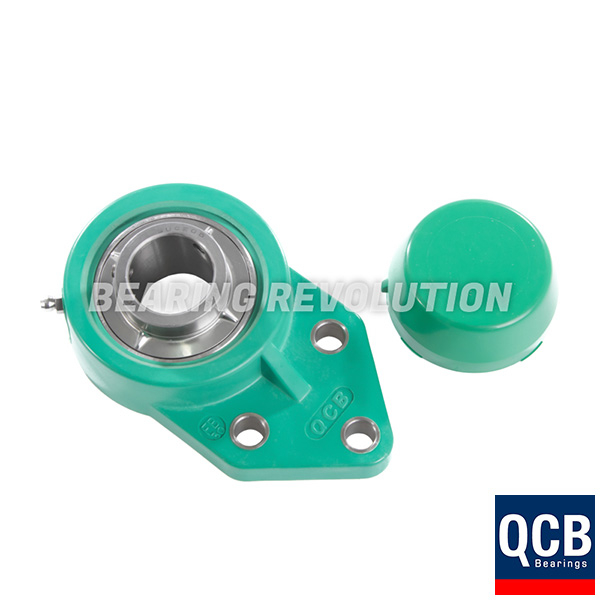

FBL 207 S/S N 6 GRN, GREEN THERMOPLASTIC FLANGE BRACKET UNIT WITH A 35MM BORE - SELECT RANGE
Metric UCFB type Green Thermoplastic Flange Bracket Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£107.00 (£128.40 inc VAT)
- 5 - 9£101.64 (£121.97 inc VAT)
- 10 +£96.29 (£115.55 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FBL 207 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 35mm bore - Select Range | |
| Reference | FBL 207 S/S N 6 GRN |
| Brand | Select |
| Inside Diameter | 35mm |
| Bolt | M12 |
| Max Torque | 35Nm |
| Weight (KG) | 0.69 |

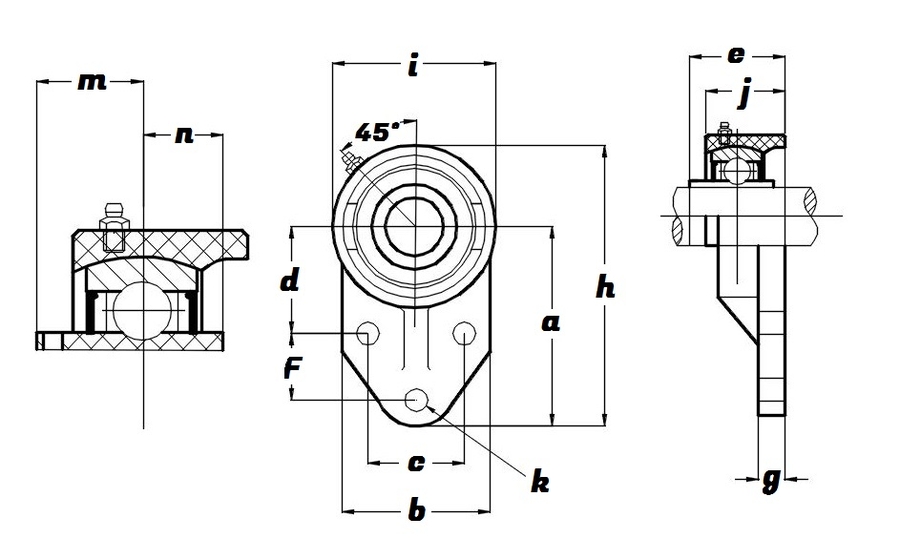

Schematic for FBL 207 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 35mm bore - Select Range | |
| a | 109.5mm |
| b | 89mm |
| c | 50.8mm |
| d | 60.3mm |
| e | 47.1mm |
| f | 31.8mm |
| g | 16.1mm |
| h | 157mm |
| i | 95mm |
| j | 36.5mm |
| k | 13.1mm |
| KG | 0.69 |
| m | 25.4mm |
| n | 17.5mm |
