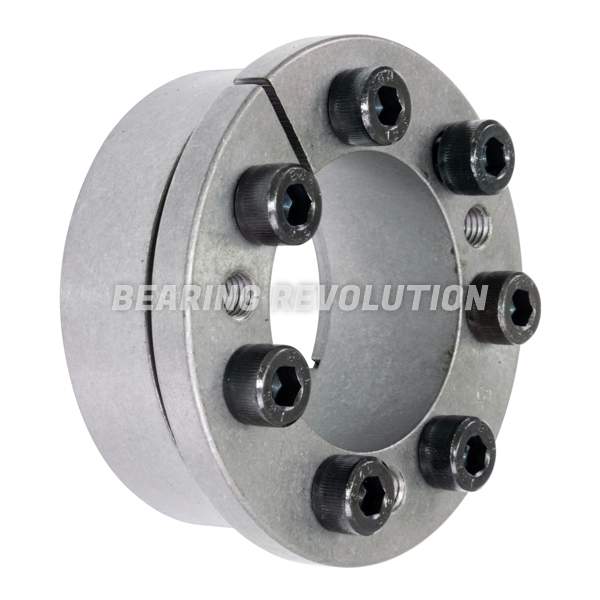

KLAB 070
LOCKING DEVICE TO SUIT A 70MM SHAFT
Self-centering locking device for rapid mainternance and assembly, medium to high torque, self locking.
- UnitsPer unit
- 1+£40.60 (£48.72 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for KLAB 070 | |
| Reference | KLAB 070 |
| Brand | BR |
| Inside Diameter | 70mm |
| Bolt | M10x30 |
| Number of Screws | 8 |
| Weight (KG) | 1.75 |

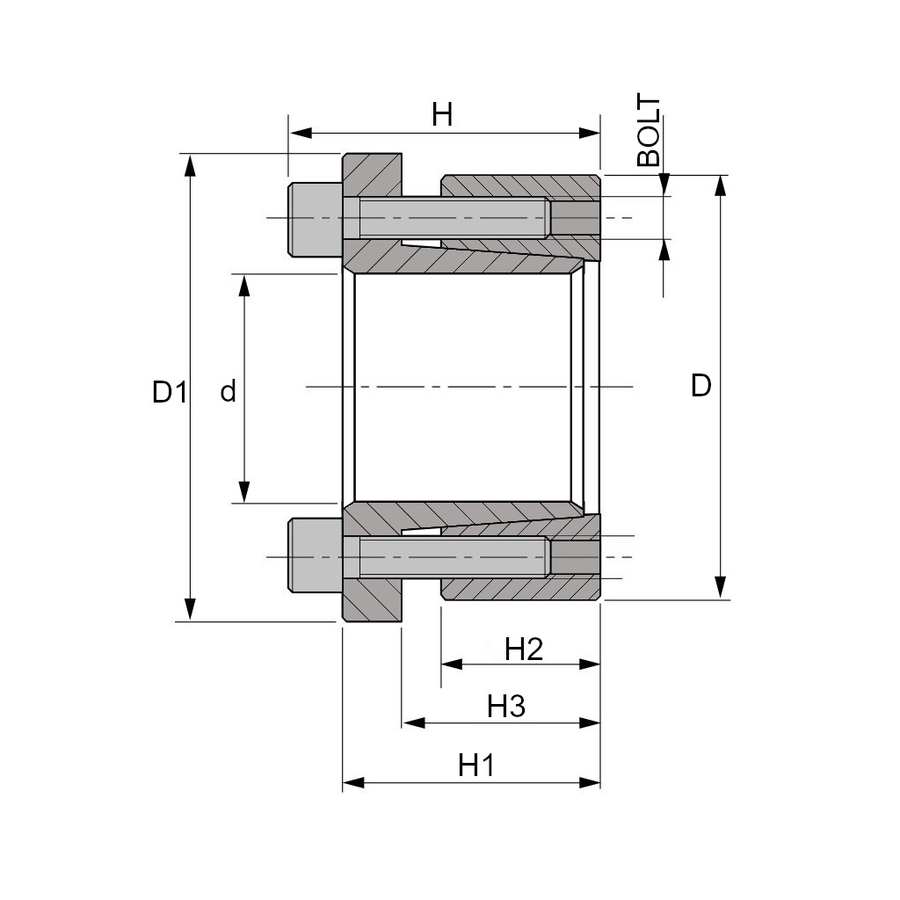

Schematic for KLAB 070 | |
| d | 70mm |
| D | 110mm |
| d1 | 119mm |
| H | 50mm |
| H1 | 40mm |
| H2 | 24mm |
| H3 | 30mm |
