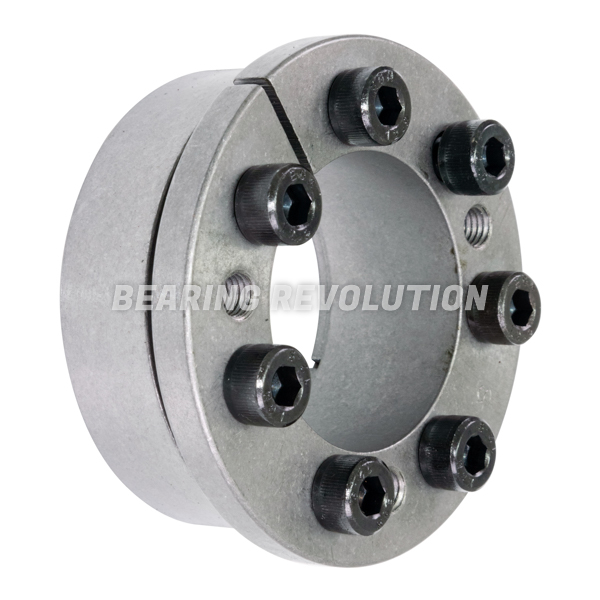

KLAB 090
LOCKING DEVICE TO SUIT A 90MM SHAFT
Self-centering locking device for rapid mainternance and assembly, medium to high torque, self locking.
- UnitsPer unit
- 1+£50.40 (£60.48 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for KLAB 090 | |
| Reference | KLAB 090 |
| Brand | BR |
| Inside Diameter | 90mm |
| Bolt | M10x30 |
| Number of Screws | 9 |
| Weight (KG) | 2 |

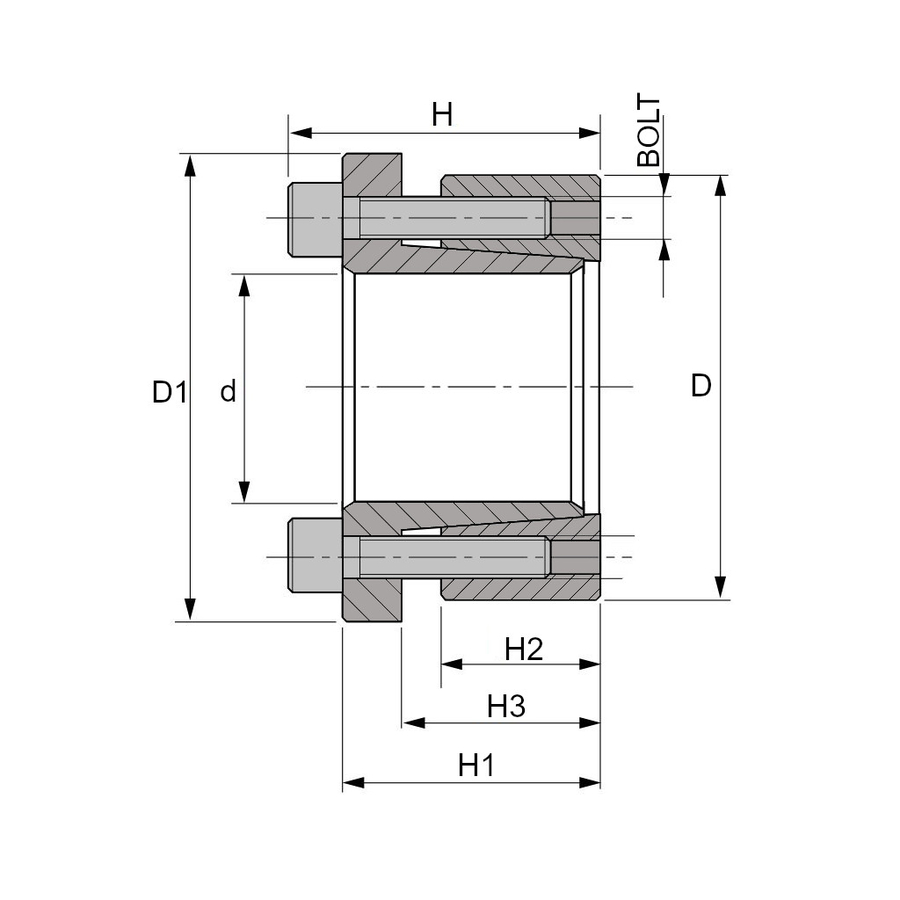

Schematic for KLAB 090 | |
| d | 90mm |
| D | 130mm |
| d1 | 139mm |
| H | 50mm |
| H1 | 40mm |
| H2 | 24mm |
| H3 | 30mm |
