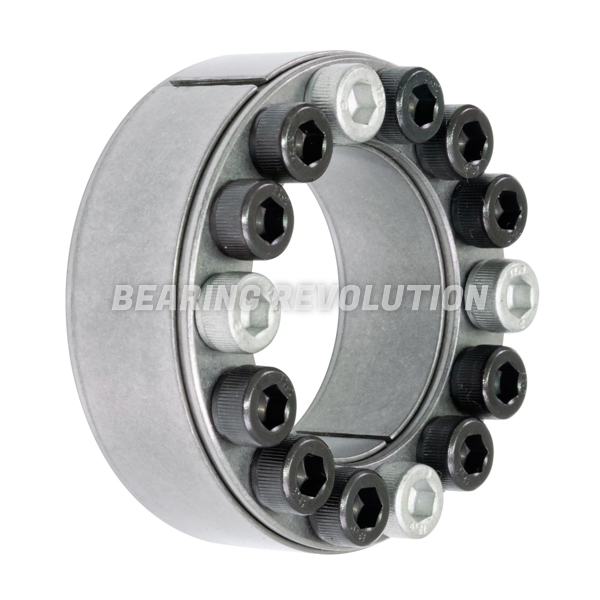

KLGG 160
LOCKING DEVICE TO SUIT A 160MM SHAFT
Not self-centering locking device for rapid mainternance and assembly, medium to high torque, non self locking.
- UnitsPer unit
- 1+£109.20 (£131.04 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for KLGG 160 | |
| Reference | KLGG 160 |
| Brand | BR |
| Inside Diameter | 110mm |
| Bolt | M12x30 |
| Number of Screws | 26 |
| Weight (KG) | 4.2 |

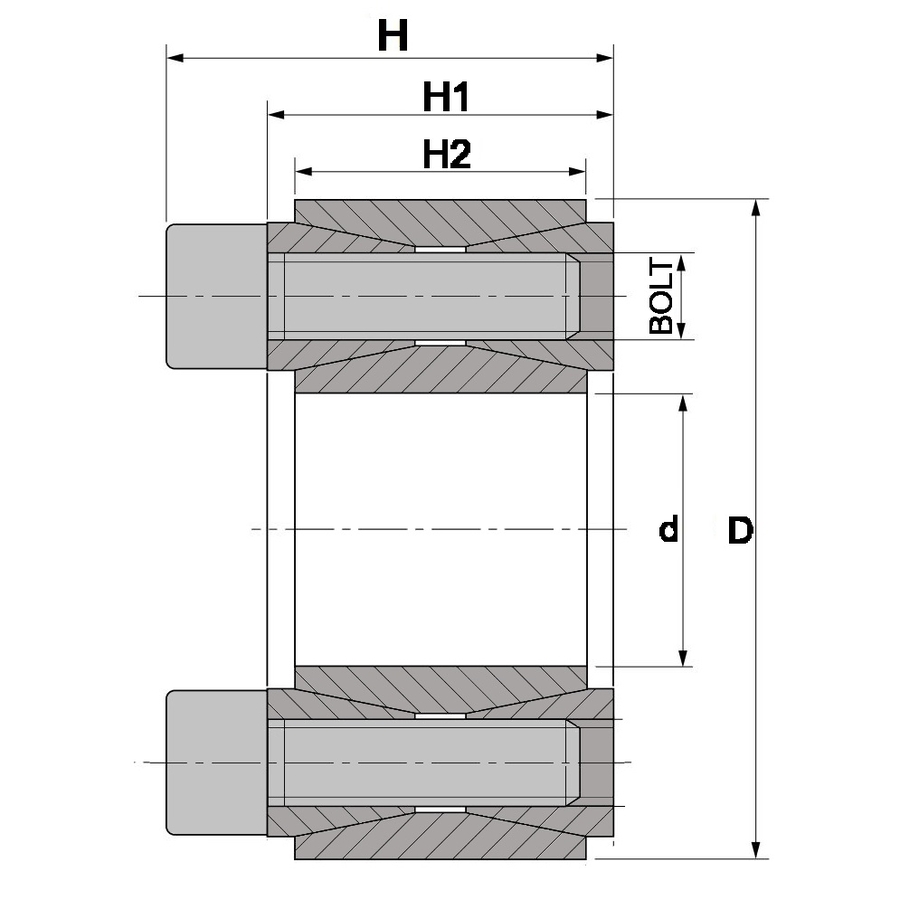

Schematic for KLGG 160 | |
| d | 160mm |
| D | 210mm |
| H | 50mm |
| H1 | 38mm |
| H2 | 34mm |
