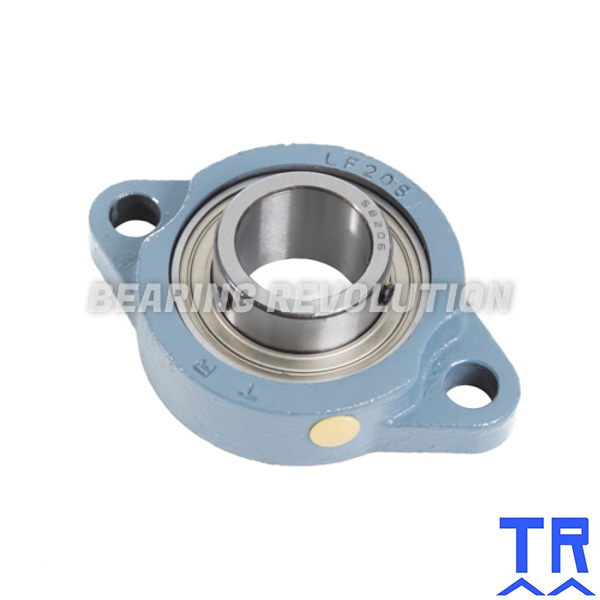

LFTC 1.3/8 A ( SBLF 207 22 ) - OVAL FLANGE UNIT WITH A 1.3/8 INCH BORE - TR BRAND
Light Duty Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£46.67 (£56.00 inc VAT)
- 5 - 9£44.35 (£53.22 inc VAT)
- 10 +£42.00 (£50.40 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for LFTC 1.3/8 A ( SBLF 207 22 ) - Oval Flange Unit with a 1.3/8 inch bore - TR Brand | |
| Reference | LFTC 1.3/8 A |
| Brand | TR |
| Inside Diameter | 1.3/8" |
| Bolt | M10 |
| Bolt1 | .3/8 |
| Weight (KG) | 0.78 |

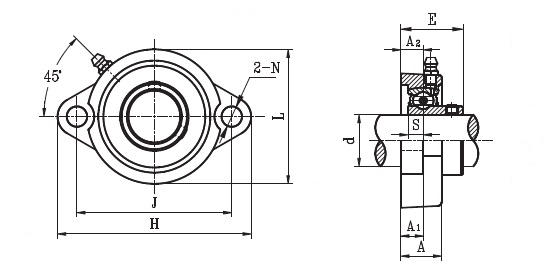

Schematic for LFTC 1.3/8 A ( SBLF 207 22 ) - Oval Flange Unit with a 1.3/8 inch bore - TR Brand | |
| A | 24mm |
| A1 | 13mm |
| A2 | 13mm |
| E | 36.5mm |
| H | 122mm |
| J | 100mm |
| KG | 0.78 |
| L | 89mm |
| N | 12mm |
| S | 8.5mm |
