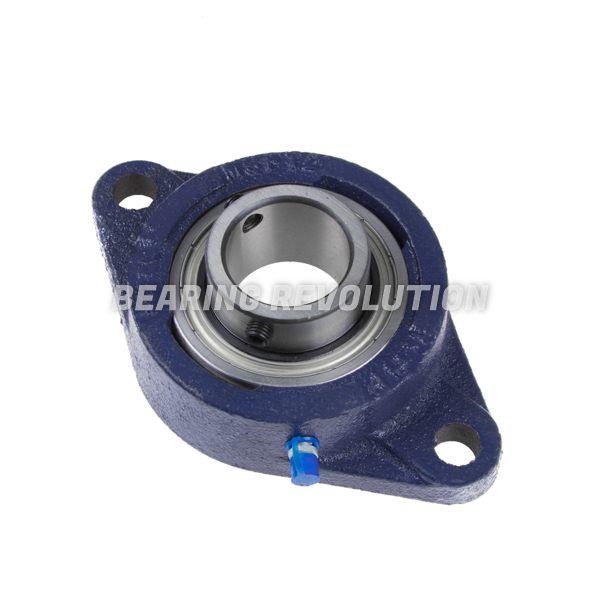

SFT 20 A, 'PREMIUM' OVAL FLANGE UNIT WITH A 20MM BORE.
Cast Iron Two Bolt Oval Flange Unit complete with flat back bearing insert from our Premium Range. Also known as SBFL 204.
Also known as SBFL 204
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£47.55 (£57.06 inc VAT)
- 5 +£45.19 (£54.23 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for SFT 20 A, 'Premium' Oval Flange unit with a 20mm bore. | |
| Reference | SFT 20 A |
| Brand | Premium |
| Inside Diameter | 20mm |
| Weight (KG) | 0.6 |

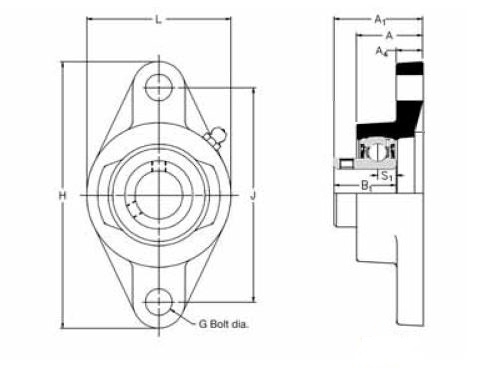

Schematic for SFT 20 A, 'Premium' Oval Flange unit with a 20mm bore. | |
| A | 27.8mm |
| G | 10mm |
| H | 111.9mm |
| J | 90mm |
| KG | 0.6 |
| L | 60.3mm |
