LPB 1 EC ( SAPP 205 16 ) - PILLOW BLOCK UNIT WITH A 1 INCH BORE - TR BRAND
Pressed Steel Two Bolt Pillow Block Unit complete with flat back bearing insert and eccentric collar lock from our TR Range.
- UnitsPer unit
- 1 - 4£16.42 (£19.70 inc VAT)
- 5 - 9£15.59 (£18.71 inc VAT)
- 10 +£14.77 (£17.72 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for LPB 1 EC ( SAPP 205 16 ) - Pillow Block Unit with a 1 inch bore - TR Brand | |
| Reference | LPB 1 EC |
| Brand | TR |
| Inside Diameter | 1" |
| Bolt | M10 |
| Weight (KG) | 0.32 |

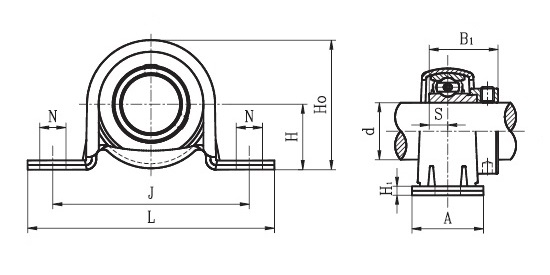

Schematic for LPB 1 EC ( SAPP 205 16 ) - Pillow Block Unit with a 1 inch bore - TR Brand | |
| A | 32mm |
| B | 30.9mm |
| H | 28.6mm |
| H0 | 4mm |
| H1 | 56.4mm |
| J | 86mm |
| KG | 0.32 |
| L | 108mm |
| N | 11.5mm |
| S | 7.5mm |
