LPB 12 A, 'PREMIUM' PILLOW BLOCK UNIT WITH A 12MM BORE.
Pressed Steel and Zinc Plated Two Bolt Pillow Block Unit complete with flat back bearing insert from our Premium Range. Also known as SBPP 201.
Also known as SBPP 201
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£28.30 (£33.96 inc VAT)
- 5 +£26.88 (£32.26 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for LPB 12 A, 'Premium' Pillow Block Unit with a 12mm bore. | |
| Reference | LPB 12 A |
| Brand | Premium |
| Inside Diameter | 12mm |
| Weight (KG) | 0.2 |

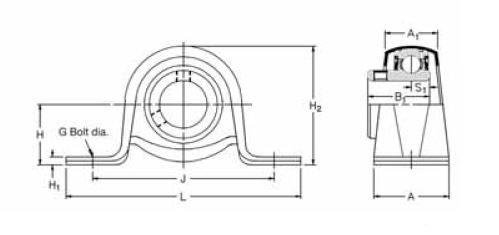

Schematic for LPB 12 A, 'Premium' Pillow Block Unit with a 12mm bore. | |
| A | 25.4mm |
| A1 | 15.9mm |
| B | 27.38mm |
| G | 8mm |
| H | 22.2mm |
| H1 | 2.4mm |
| H2 | 43.2mm |
| J | 68mm |
| KG | 0.2 |
| L | 85.7mm |
| s1 | 6.55mm |
