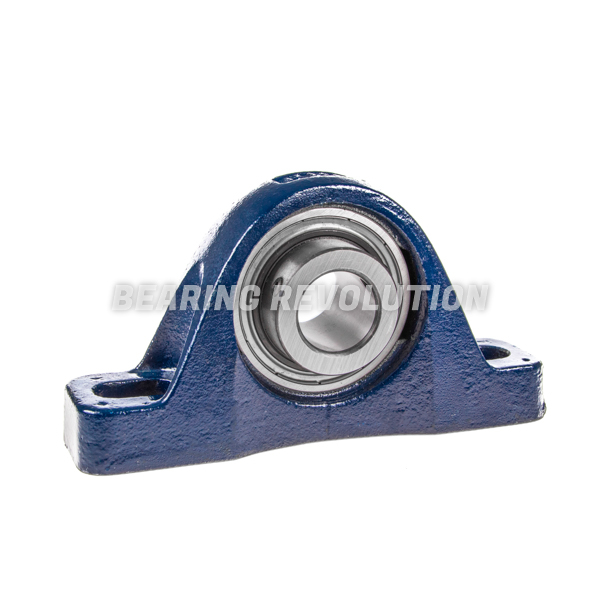

MP 100, 'PREMIUM' PILLOW BLOCK HOUSING UNIT WITH A 100MM BORE.
Heavy Duty Cast Iron Pillow Block Housing Unit complete with full wdith bearing insert from our Premium Range. Also known as UCPX 20.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£1,090.88 (£1,309.06 inc VAT)
- 5 +£1,036.33 (£1,243.60 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MP 100, 'Premium' Pillow Block Housing Unit with a 100mm bore. | |
| Reference | MP 100 |
| Brand | Premium |
| Inside Diameter | 100mm |
| Weight (KG) | 34.4 |

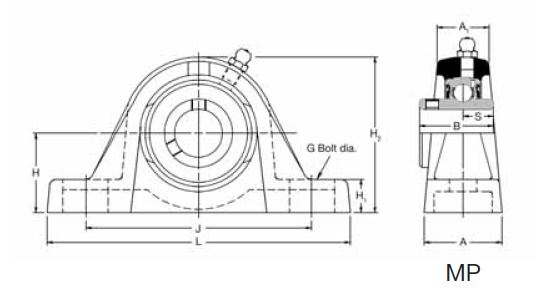

Schematic for MP 100, 'Premium' Pillow Block Housing Unit with a 100mm bore. | |
| A | 120.6mm |
| H | 127mm |
| H2 | 254mm |
| J | 301.6 - 371.5mm |
| KG | 34.4 |
| L | 431.8mm |
