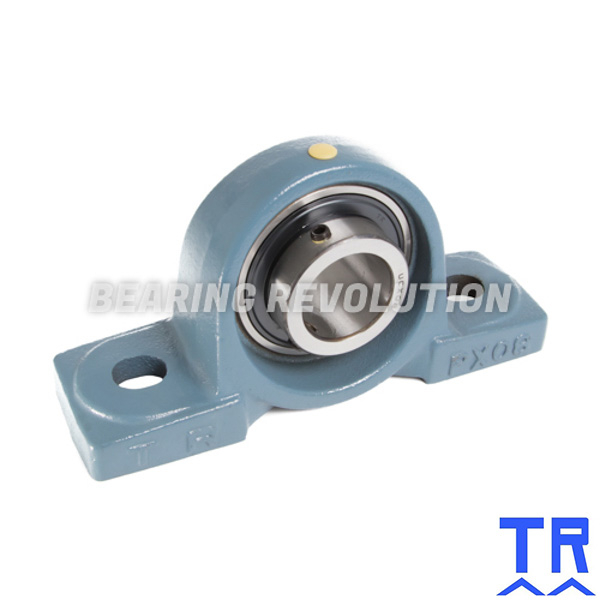

MP 2.3/4 ( UCPX 14 44 ) - PILLOW BLOCK HOUSING UNIT WITH A 2.3/4 INCH BORE - TR BRAND
Heavy Duty Cast Iron Pillow Block Housing Unit complete with full width bearing insert from our TR Range.
- UnitsPer unit
- 1 - 4£231.37 (£277.64 inc VAT)
- 5 - 9£219.80 (£263.76 inc VAT)
- 10 +£208.23 (£249.88 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MP 2.3/4 ( UCPX 14 44 ) - Pillow Block Housing Unit with a 2.3/4 inch bore - TR Brand | |
| Reference | MP 2.3/4 |
| Brand | TR |
| Inside Diameter | 2.3/4" |
| Bolt | M22 |
| Weight (KG) | 9.63 |
Schematic for MP 2.3/4 ( UCPX 14 44 ) - Pillow Block Housing Unit with a 2.3/4 inch bore - TR Brand | |
| A | 85mm |
| B | 77.8mm |
| H | 88.9mm |
| H0 | 170mm |
| H1 | 34mm |
| J | 229mm |
| KG | 9.63 |
| L | 320mm |
| N | 27mm |
| N1 | 30mm |
| S | 33.3mm |
