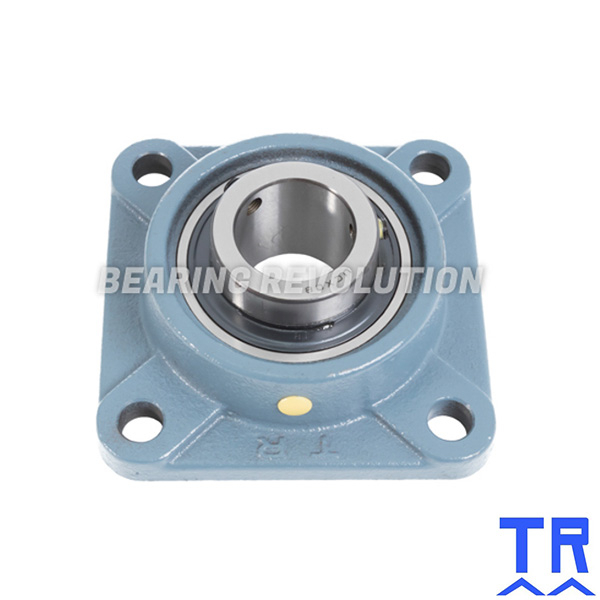

MSF 1 ( UCFX 05 16 ) - SQUARE FLANGED UNIT WITH A 1 INCH BORE - TR BRAND
Heavy Duty Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£46.24 (£55.49 inc VAT)
- 5 - 9£43.93 (£52.72 inc VAT)
- 10 +£41.62 (£49.94 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MSF 1 ( UCFX 05 16 ) - Square Flanged Unit with a 1 inch bore - TR Brand | |
| Reference | MSF 1 |
| Brand | TR |
| Inside Diameter | 1" |
| Bolt | M10 |
| Weight (KG) | 1.13 |

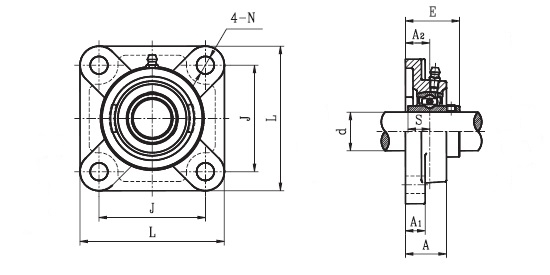

Schematic for MSF 1 ( UCFX 05 16 ) - Square Flanged Unit with a 1 inch bore - TR Brand | |
| A | 30mm |
| A1 | 13mm |
| A2 | 18mm |
| E | 40.2mm |
| J | 82.5mm |
| KG | 1.13 |
| L | 108mm |
| N | 11.5mm |
| S | 15.9mm |
