MSF 1.1/2 ( UCFX 08 24 ) - SQUARE FLANGED UNIT WITH A 1.1/2 INCH BORE - TR BRAND
Heavy Duty Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£70.54 (£84.65 inc VAT)
- 5 - 9£67.01 (£80.41 inc VAT)
- 10 +£63.49 (£76.19 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MSF 1.1/2 ( UCFX 08 24 ) - Square Flanged Unit with a 1.1/2 inch bore - TR Brand | |
| Reference | MSF 1.1/2 |
| Brand | TR |
| Inside Diameter | 1.1/2" |
| Bolt | M14 |
| Weight (KG) | 2.18 |

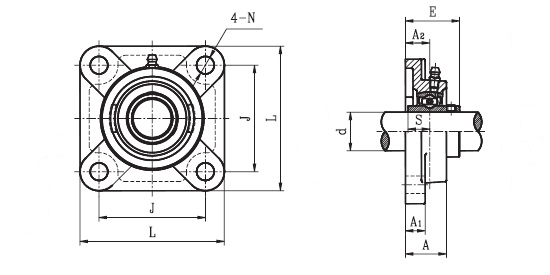

Schematic for MSF 1.1/2 ( UCFX 08 24 ) - Square Flanged Unit with a 1.1/2 inch bore - TR Brand | |
| A | 40mm |
| A1 | 14mm |
| A2 | 22mm |
| E | 52.2mm |
| J | 105mm |
| KG | 2.18 |
| L | 137mm |
| N | 15mm |
| S | 19mm |
