UCT 214
TAKE UP UNIT WITH A 70MM BORE - TR BRAND
Cast Iron Take Up Unit complete with full width bearing insert from our TR Range.
Also known as UCT214
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£234.27 (£281.12 inc VAT)
- 5 - 9£222.57 (£267.08 inc VAT)
- 10 +£210.84 (£253.01 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCT 214 | |
| Reference | UCT 214 |
| Brand | Budget |
| Inside Diameter | 70mm |
| Weight (KG) | 6.76 |

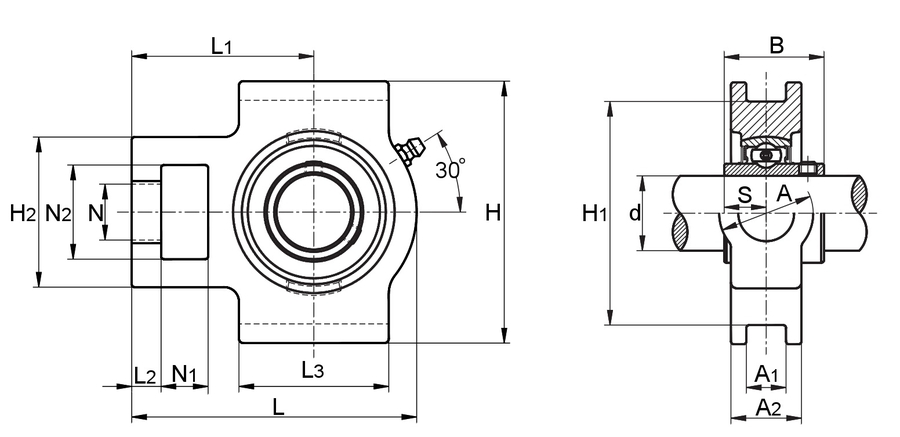

Schematic for UCT 214 | |
| A | 70mm |
| A1 | 26mm |
| A2 | 46mm |
| B | 74.6mm |
| d | 70mm |
| H | 167mm |
| H1 | 151mm |
| H2 | 111mm |
| KG | 6.76 |
| L | 224mm |
| L1 | 137mm |
| L2 | 21mm |
| L3 | 121mm |
| N | 41mm |
| N1 | 32mm |
| N2 | 70mm |
| S | 30.2mm |
