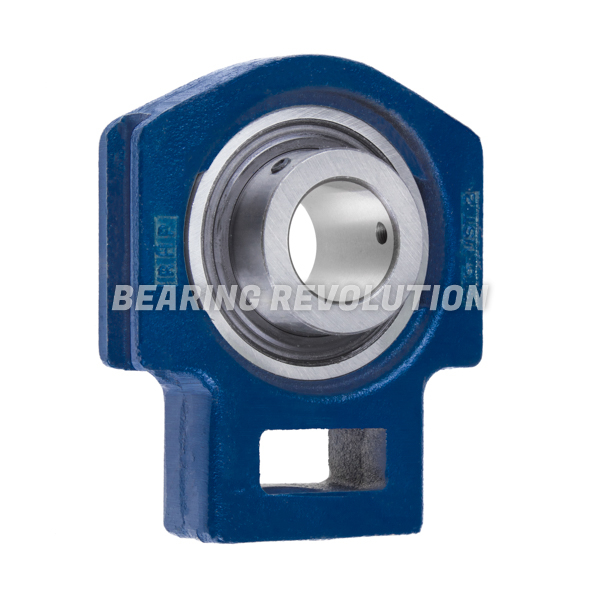

MST 50, 'PREMIUM' TAKE UP UNIT WITH A 50MM BORE.
Heavy Duty Cast Iron Take Up Unit complete with full width bearing insert from our Premium Range.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£222.78 (£267.34 inc VAT)
- 5 +£211.65 (£253.98 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for MST 50, 'Premium' Take Up Unit with a 50mm bore. | |
| Reference | MST 50 |
| Brand | Premium |
| Inside Diameter | 50mm |
| Weight (KG) | 4.2 |

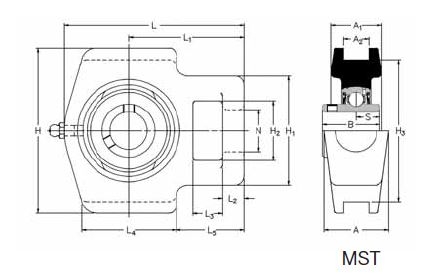

Schematic for MST 50, 'Premium' Take Up Unit with a 50mm bore. | |
| A | 63.5mm |
| A1 | 46.5mm |
| A2 | 27mm |
| B | 55.6mm |
| H | 146mm |
| H1 | 101mm |
| H2 | 64mm |
| H3 | 130mm |
| KG | 4.2 |
| L | 182mm |
| L1 | 114mm |
| L2 | 19mm |
| L3 | 32mm |
| L4 | 97.5mm |
| L5 | 70mm |
| N | 35mm |
| s | 22.24mm |
