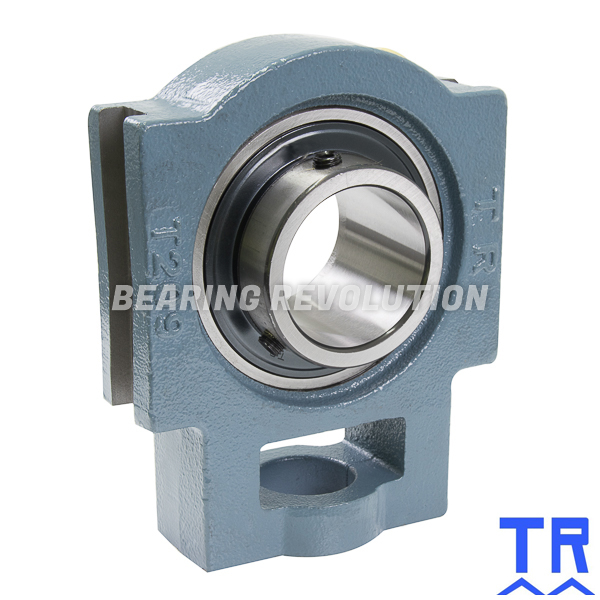

UCT 209
TAKE UP UNIT WITH A 45MM BORE - TR BRAND
Cast Iron Take Up Unit complete with full width bearing insert from our TR Range.
Also known as UCT209
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£69.00 (£82.80 inc VAT)
- 5 - 9£65.56 (£78.67 inc VAT)
- 10 +£62.11 (£74.53 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for UCT 209 | |
| Reference | UCT 209 |
| Brand | Budget |
| Inside Diameter | 45mm |
| Weight (KG) | 2.33 |

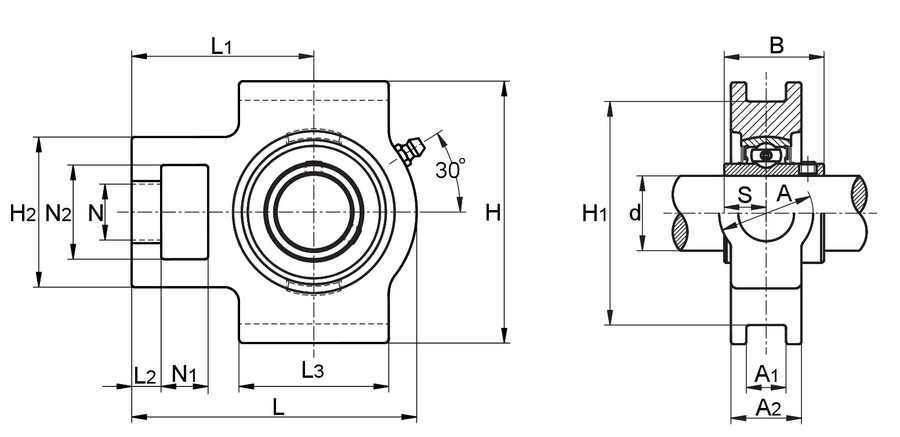

Schematic for UCT 209 | |
| A | 49mm |
| A1 | 16mm |
| A2 | 35mm |
| A4 | 70mm |
| B | 49.2mm |
| d | 45mm |
| H | 117mm |
| H1 | 102mm |
| H2 | 83mm |
| KG | 2.33 |
| L | 144mm |
| L1 | 87mm |
| L2 | 16mm |
| L3 | 83mm |
| N | 29mm |
| N1 | 19mm |
| N2 | 49mm |
| S | 19mm |
