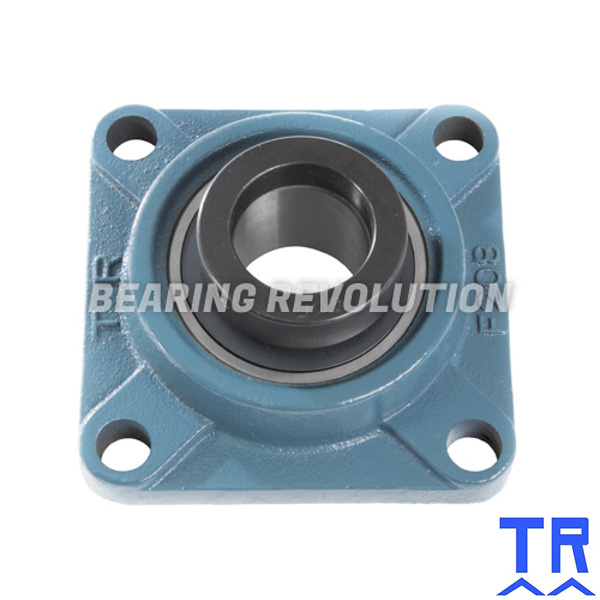

NAF 205-16 - BEARING UNIT
Cast Iron Four Bolt Square Flanged Unit complete with full width bearing insert with Eccentric collar lock from our TR range.
Also known as NAF205-16, SF 1 DEC, NAF20516, SF1DEC
- UnitsPer unit
- 1 - 4£38.83 (£46.60 inc VAT)
- 5 - 9£36.89 (£44.27 inc VAT)
- 10 +£34.95 (£41.94 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NAF 205-16 - Bearing Unit | |
| Reference | SF 1 DEC |
| Brand | TR |
| Inside Diameter | 1" |
| Bolt | M10 |
| F Min | 36mm |
| Type | Eccentric Collar Lock |
| Weight (KG) | 0.83 |

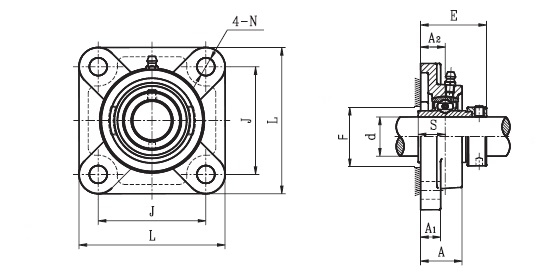

Schematic for NAF 205-16 - Bearing Unit | |
| A | 27mm |
| A1 | 13mm |
| A2 | 16mm |
| E | 42.9mm |
| J | 70mm |
| KG | 0.83 |
| L | 95mm |
| N | 11.5mm |
| S | 17.4mm |
