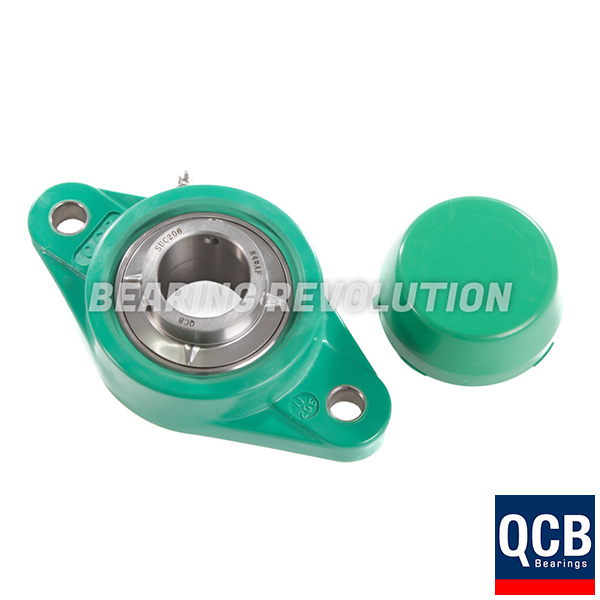

NFL 202 S/S N 6 GRN, GREEN THERMOPLASTIC OVAL FLANGE HOUSING UNIT WITH A 15 BORE - SELECT RANGE
Metric SFT - UCFL type Green Thermoplastic Oval Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£74.85 (£89.82 inc VAT)
- 5 - 9£71.09 (£85.31 inc VAT)
- 10 +£67.36 (£80.83 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NFL 202 S/S N 6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 15 bore - Select Range | |
| Reference | NFL 202 S/S N 6 GRN |
| Brand | Select |
| Inside Diameter | 15mm |
| Bolt | M10 |
| Max Torque | 18Nm |
| Weight (KG) | 0.21 |

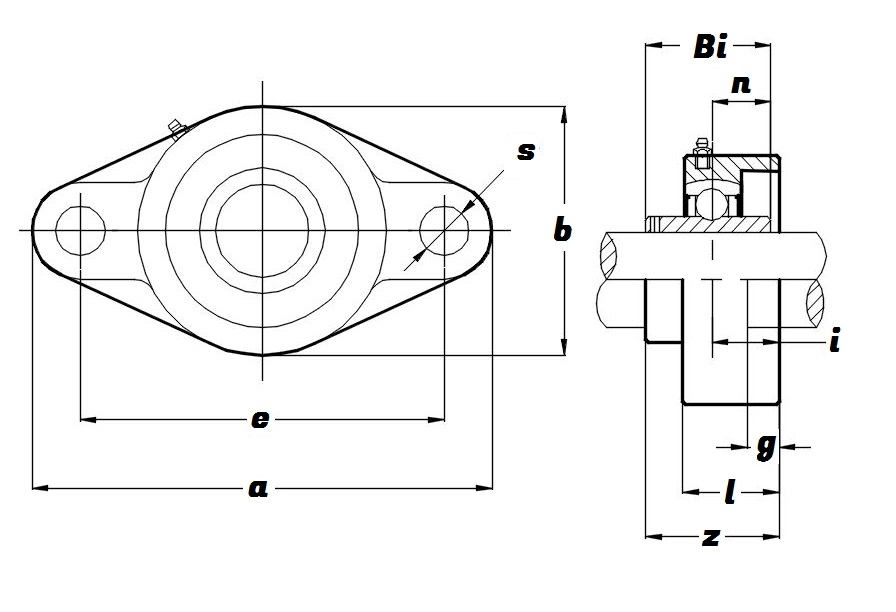

Schematic for NFL 202 S/S N 6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 15 bore - Select Range | |
| a | 113mm |
| b | 65mm |
| Bi | 31mm |
| e | 90mm |
| g | 11.4mm |
| i | 15.4mm |
| KG | 0.21 |
| l | 26.5mm |
| n | 12.7mm |
| s | 11mm |
| z | 33.7mm |
