HPL 204 S/S N 6 GRN, GREEN THERMOPLASTIC HANGER HOUSING UNIT WITH A 20 BORE - SELECT RANGE

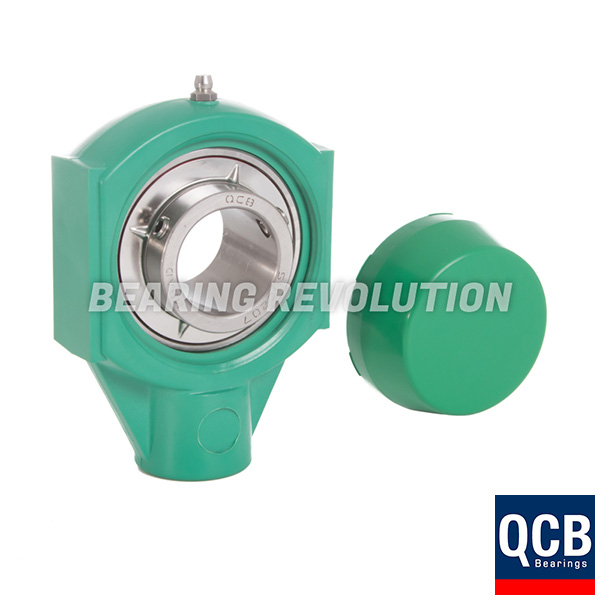

Name: HPL 204 S/S N 6 GRN, Green Thermoplastic Hanger Housing Unit with a 20 bore - Select Range
Brand: Select
Price: 76.16 GBP
Availability: InStock

BR Stock No. S-HPL 204 S/S N 6 GRN | Brand: Select | Mfr. Part No. HPL 204 S/S N 6 GRN

Metric Green Thermoplastic Hanger Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£63.47 (£76.16 inc VAT)
5 - 9£60.29 (£72.35 inc VAT)
10 +£57.12 (£68.54 inc VAT)
Bulk Order PricesENQUIRE

HPL 204 S/S N 6 GRN, Green Thermoplastic Hanger Housing Unit with a 20 bore - Select Range Schematic

Specifications for HPL 204 S/S N 6 GRN, Green Thermoplastic Hanger Housing Unit with a 20 bore - Select Range
Reference	HPL 204 S/S N 6 GRN
Brand	Select
Inside Diameter	20mm
Weight (KG)	0.28

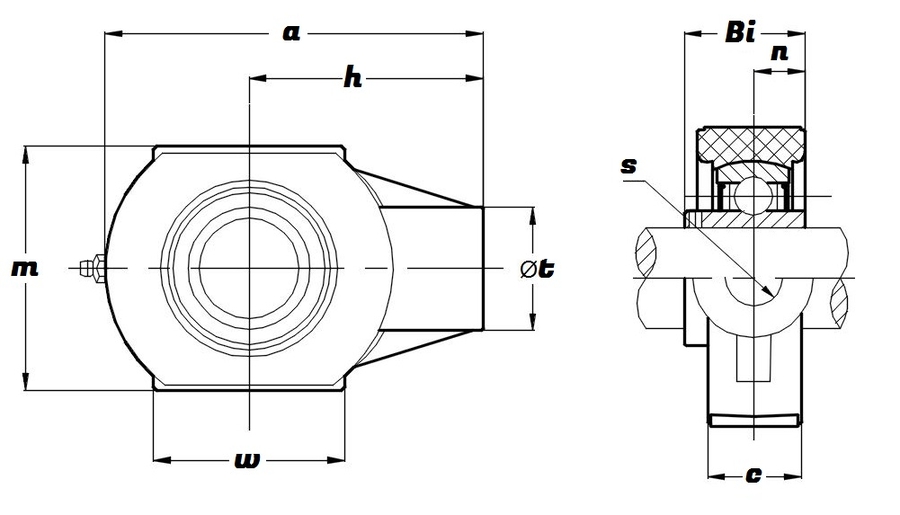

Schematic for HPL 204 S/S N 6 GRN, Green Thermoplastic Hanger Housing Unit with a 20 bore - Select Range
a	99mm
Bi	31mm
c	27.5mm
h	63.5mm
KG	0.28
m	65mm
n	12.7mm
t	36mm
w	47mm
