NFL 206 S/S N 6 GRN, GREEN THERMOPLASTIC OVAL FLANGE HOUSING UNIT WITH A 30 BORE - SELECT RANGE
Metric SFT - UCFL type Green Thermoplastic Oval Flange Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£78.40 (£94.08 inc VAT)
- 5 - 9£74.48 (£89.38 inc VAT)
- 10 +£70.58 (£84.70 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NFL 206 S/S N 6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 30 bore - Select Range | |
| Reference | NFL 206 S/S N 6 GRN |
| Brand | Select |
| Inside Diameter | 30mm |
| Bolt | M10 |
| Max Torque | 30Nm |
| Weight (KG) | 0.42 |

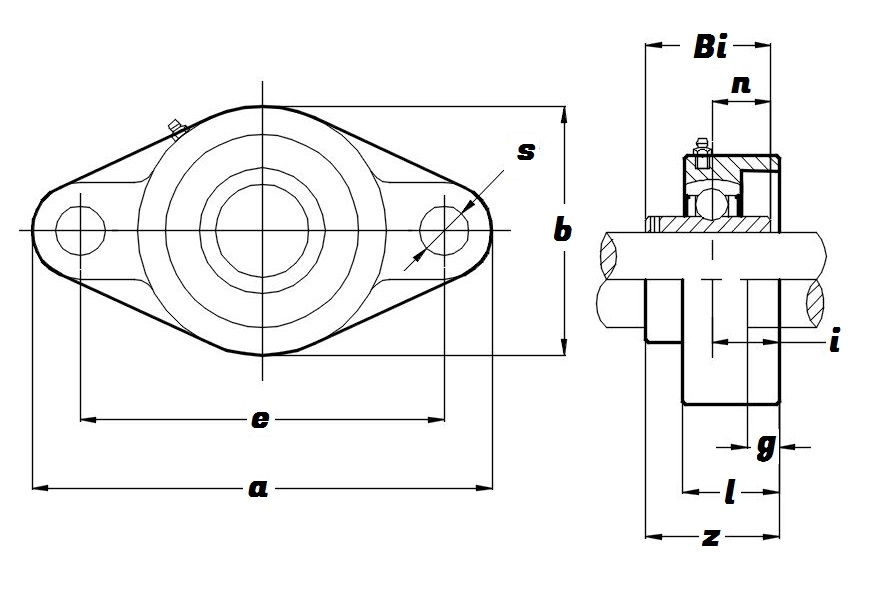

Schematic for NFL 206 S/S N 6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 30 bore - Select Range | |
| a | 148mm |
| b | 80mm |
| Bi | 38.1mm |
| e | 117mm |
| g | 13.3mm |
| i | 19mm |
| KG | 0.42 |
| l | 30.5mm |
| n | 15.9mm |
| s | 11mm |
| z | 41.2mm |
