FBL 206 S/S N 6 GRN, GREEN THERMOPLASTIC FLANGE BRACKET UNIT WITH A 30MM BORE - SELECT RANGE

Name: FBL 206 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 30mm bore - Select Range
Brand: Select
Price: 115.04 GBP
Availability: InStock

BR Stock No. S-FBL 206 S/S N 6 GRN | Brand: Select | Mfr. Part No. FBL 206 S/S N 6 GRN

Metric UCFB type Green Thermoplastic Flange Bracket Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£95.87 (£115.04 inc VAT)
5 - 9£91.07 (£109.28 inc VAT)
10 +£86.28 (£103.54 inc VAT)
Bulk Order PricesENQUIRE

FBL 206 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 30mm bore - Select Range Schematic

Specifications for FBL 206 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 30mm bore - Select Range
Reference	FBL 206 S/S N 6 GRN
Brand	Select
Inside Diameter	30mm
Bolt	M10
Max Torque	30Nm
Weight (KG)	0.45

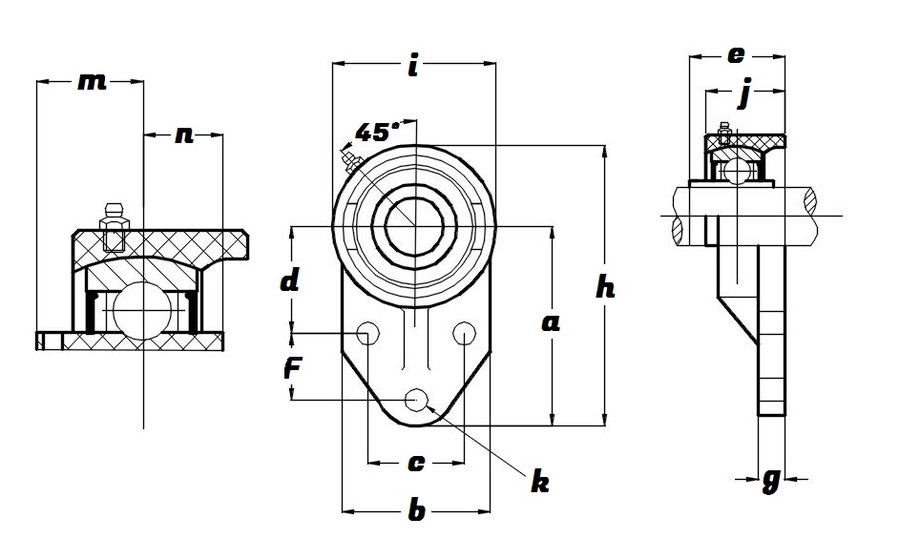

Schematic for FBL 206 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 30mm bore - Select Range
a	96.5mm
b	76mm
c	47.6mm
d	52.4mm
e	41.5mm
f	31.8mm
g	13.3mm
h	138.5mm
i	83mm
j	32mm
k	10.7mm
KG	0.45
m	22.2mm
n	15.9mm
