NFL 210 S/S N 6 GRN, GREEN THERMOPLASTIC OVAL FLANGE HOUSING UNIT WITH A 50MM BORE - BUDGET RANGE
Metric SFT - UCFL type Green Thermoplastic Oval Flange Housing Unit complete with Stainless Steel insert filled with food grade grease from our Budget range.
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£151.10 (£181.32 inc VAT)
- 5 - 9£143.54 (£172.25 inc VAT)
- 10 +£135.99 (£163.19 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NFL 210 S/S N 6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 50mm bore - Budget Range | |
| Reference | NFL 210 S/S N 6 GRN |
| Brand | Budget |
| Inside Diameter | 50mm |
| Bolt | M16 |
| Max Torque | 50Nm |
| Weight (KG) | 1.33 |

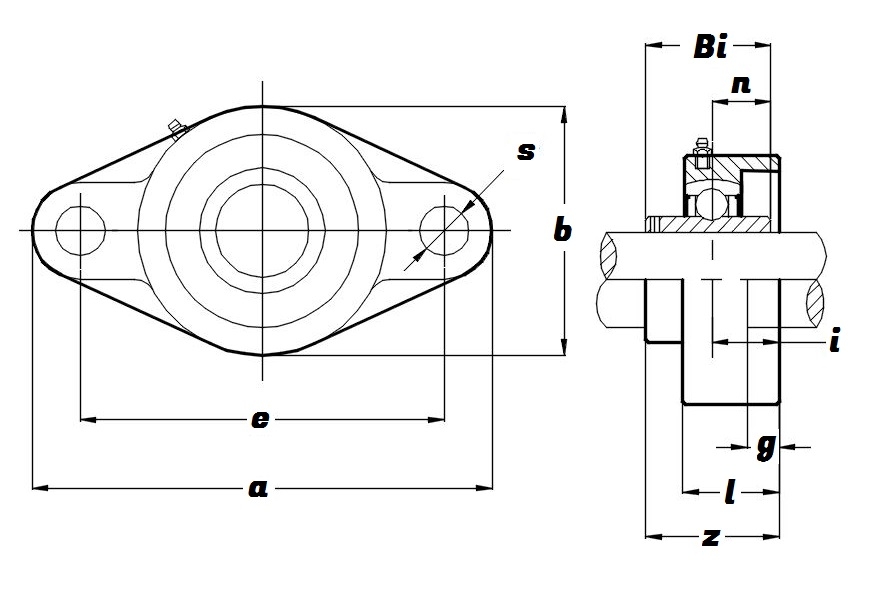

Schematic for NFL 210 S/S N 6 GRN, Green Thermoplastic Oval Flange Housing Unit with a 50mm bore - Budget Range | |
| a | 197mm |
| b | 115mm |
| Bi | 51.6mm |
| e | 157mm |
| g | 21mm |
| i | 25mm |
| KG | 1.33 |
| l | 43mm |
| n | 19mm |
| s | 17mm |
| z | 57.6mm |
