NP 15 ( UCP 202 ) - PILLOW BLOCK HOUSING UNIT WITH A 15MM BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£25.78 (£30.94 inc VAT)
- 5 - 9£24.48 (£29.38 inc VAT)
- 10 +£23.21 (£27.85 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 15 ( UCP 202 ) - Pillow Block Housing Unit with a 15mm bore - TR Brand | |
| Reference | NP 15 |
| Brand | TR |
| Inside Diameter | 15mm |
| Bolt | M10 |
| Weight (KG) | 0.7 |

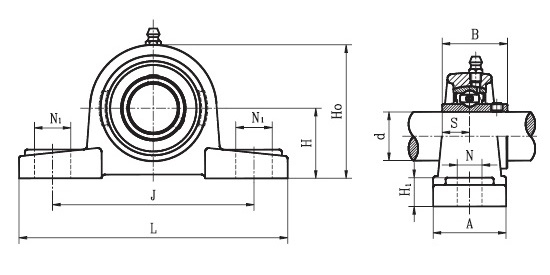

Schematic for NP 15 ( UCP 202 ) - Pillow Block Housing Unit with a 15mm bore - TR Brand | |
| A | 37mm |
| B | 31mm |
| H | 30.2mm |
| H0 | 60.7mm |
| H1 | 14mm |
| J | 96mm |
| KG | 0.7 |
| L | 125mm |
| N | 13mm |
| N1 | 19mm |
| S | 12.7mm |
