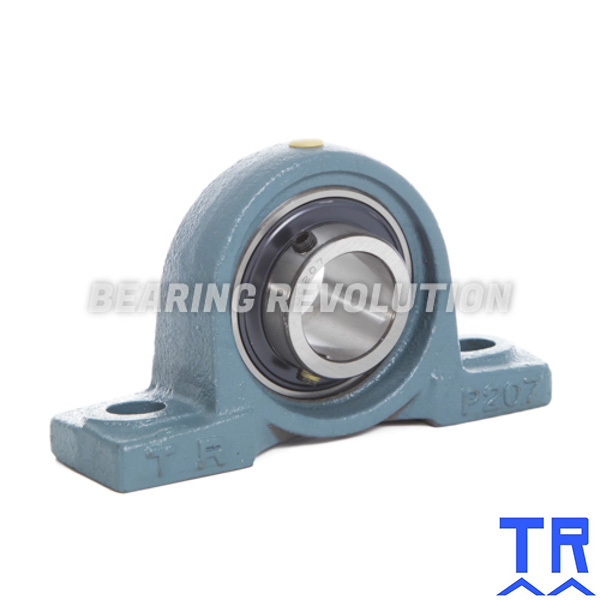

NP 1.3/4 ( UCP 209 28 ) - PILLOW BLOCK HOUSING UNIT WITH A 1.3/4 INCH BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£60.11 (£72.13 inc VAT)
- 5 - 9£57.10 (£68.52 inc VAT)
- 10 +£54.11 (£64.93 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 1.3/4 ( UCP 209 28 ) - Pillow Block Housing Unit with a 1.3/4 inch bore - TR Brand | |
| Reference | NP 1.3/4 |
| Brand | TR |
| Inside Diameter | 1.3/4" |
| Bolt | M12 |
| Weight (KG) | 2.36 |

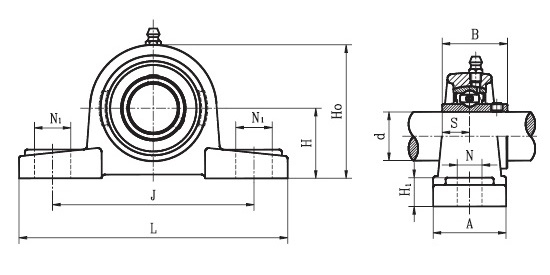

Schematic for NP 1.3/4 ( UCP 209 28 ) - Pillow Block Housing Unit with a 1.3/4 inch bore - TR Brand | |
| A | 54mm |
| B | 49.2mm |
| H | 54mm |
| H0 | 108mm |
| H1 | 20mm |
| J | 146mm |
| KG | 2.36 |
| L | 190mm |
| N | 15mm |
| N1 | 21mm |
| S | 19mm |
