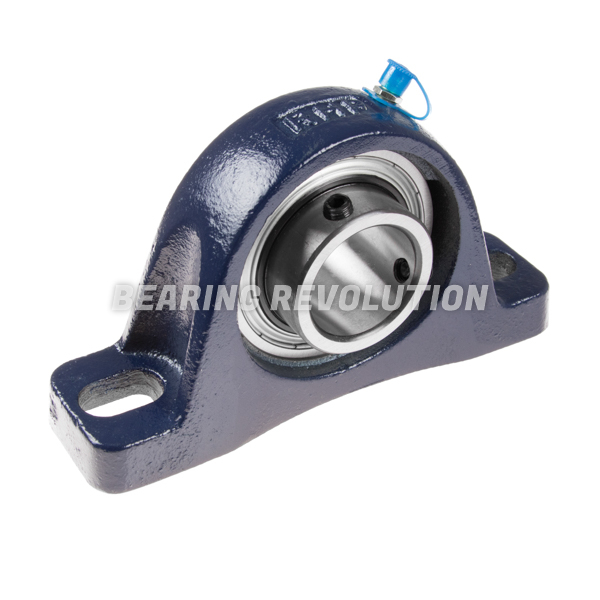

NP 45 A, 'PREMIUM' PILLOW BLOCK HOUSING UNIT WITH A 45MM BORE.
Cast Iron Two Bolt Pillow Block Housing Unit complete with flat back bearing insert from our Premium Range. Also known as SBP 209
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1 - 4£104.65 (£125.58 inc VAT)
- 5 +£99.42 (£119.30 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 45 A, 'Premium' Pillow Block Housing Unit with a 45mm bore. | |
| Reference | NP 45 A |
| Brand | Premium |
| Inside Diameter | 45mm |
| Weight (KG) | 2.8 |

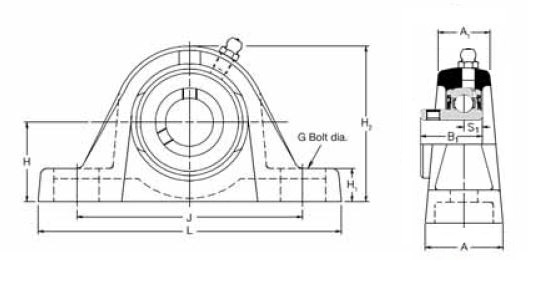

Schematic for NP 45 A, 'Premium' Pillow Block Housing Unit with a 45mm bore. | |
| A | 54mm |
| H | 54mm |
| H2 | 108mm |
| J | 140.5 - 154.5mm |
| KG | 2.8 |
| L | 190.5mm |
