NP 45 EC ( SAP 209 ) - PILLOW BLOCK HOUSING UNIT WITH A 45MM BORE - TR BRAND

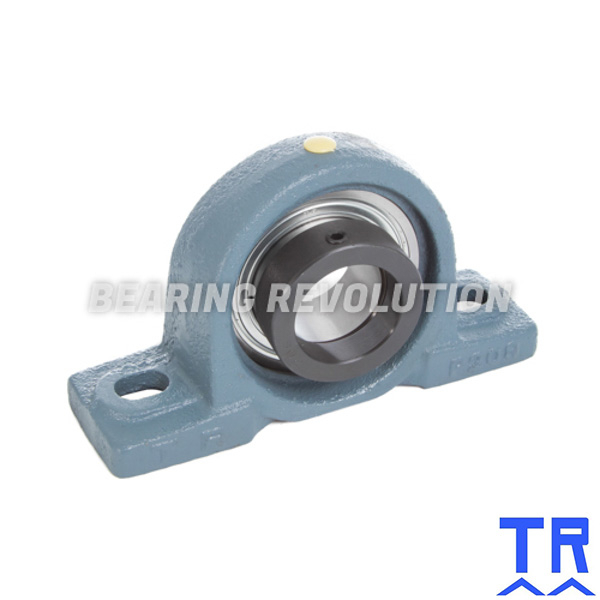

Cast Iron Two Bolt Pillow Block Housing Unit fitted with flat back bearing insert with Eccentric collar lock from our TR range.
- UnitsPer unit
- 1 - 4£60.36 (£72.43 inc VAT)
- 5 - 9£57.35 (£68.82 inc VAT)
- 10 +£54.32 (£65.18 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP 45 EC ( SAP 209 ) - Pillow Block Housing Unit with a 45mm bore - TR Brand | |
| Reference | NP 45 EC |
| Brand | TR |
| Inside Diameter | 45mm |
| Bolt | M12 |
| Type | Eccentric Collar Lock |
| Weight (KG) | 2.34 |

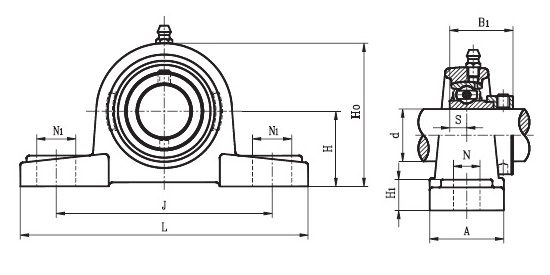

Schematic for NP 45 EC ( SAP 209 ) - Pillow Block Housing Unit with a 45mm bore - TR Brand | |
| A | 54mm |
| B1 | 43.7mm |
| H | 54mm |
| H0 | 108mm |
| H1 | 20mm |
| J | 146mm |
| KG | 2.34 |
| L | 190mm |
| N | 15mm |
| N1 | 21mm |
| S | 11mm |
