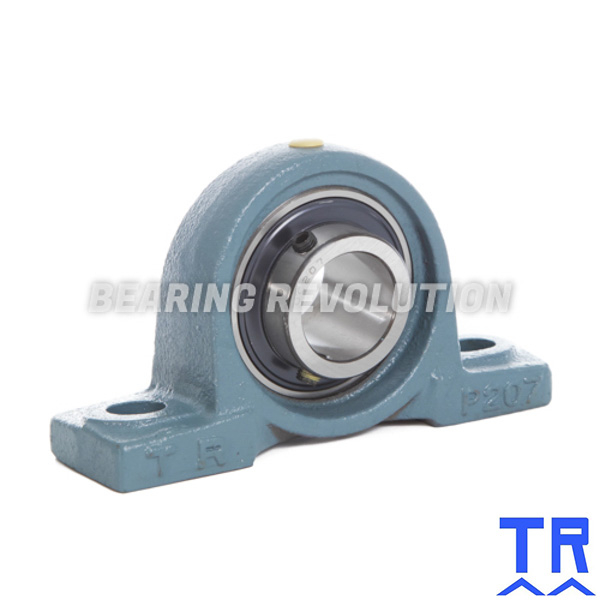

NP .5/8 ( UCP 202 10 ) - PILLOW BLOCK HOUSING UNIT WITH A 5/8 INCH BORE - TR BRAND
Cast Iron Two Bolt Pillow Block Housing Unit complete with full width bearing insert from our TR range.
- UnitsPer unit
- 1 - 4£28.14 (£33.77 inc VAT)
- 5 - 9£26.74 (£32.09 inc VAT)
- 10 +£25.32 (£30.38 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for NP .5/8 ( UCP 202 10 ) - Pillow Block Housing Unit with a 5/8 inch bore - TR Brand | |
| Reference | NP .5/8 |
| Brand | TR |
| Inside Diameter | .5/8" |
| Bolt | M10 |
| Weight (KG) | 0.7 |

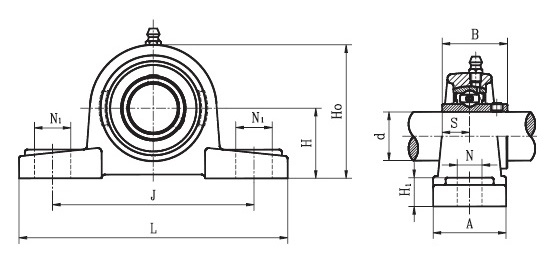

Schematic for NP .5/8 ( UCP 202 10 ) - Pillow Block Housing Unit with a 5/8 inch bore - TR Brand | |
| A | 37mm |
| B | 31mm |
| H | 30.2mm |
| H0 | 60.7mm |
| H1 | 14mm |
| J | 96mm |
| KG | 0.7 |
| L | 125mm |
| N | 13mm |
| N1 | 19mm |
| S | 12.7mm |
