PPL 205 16 S/S N6 GRN, GREEN THERMOPLASTIC PILLOW BLOCK HOUSING UNIT WITH A 1 INCH BORE - SELECT RANGE

Name: PPL 205 16 S/S N6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 1 inch bore - Select Range
Brand: Select
Price: 84.11 GBP
Availability: InStock

BR Stock No. S-PPL 205 16 S/S N6 GRN | Brand: Select | Mfr. Part No. PPL 205 16 S/S N6 GRN

Imperial NP - UCP type Green Thermoplastic Pillow Block Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£70.09 (£84.11 inc VAT)
5 - 9£66.61 (£79.93 inc VAT)
10 +£63.11 (£75.73 inc VAT)
Bulk Order PricesENQUIRE

PPL 205 16 S/S N6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 1 inch bore - Select Range Schematic

Specifications for PPL 205 16 S/S N6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 1 inch bore - Select Range
Reference	PPL 205 16 S/S N6 GRN
Brand	Select
Inside Diameter	1"
Bolt	M10
Max Torque	25Nm
Weight (KG)	0.31

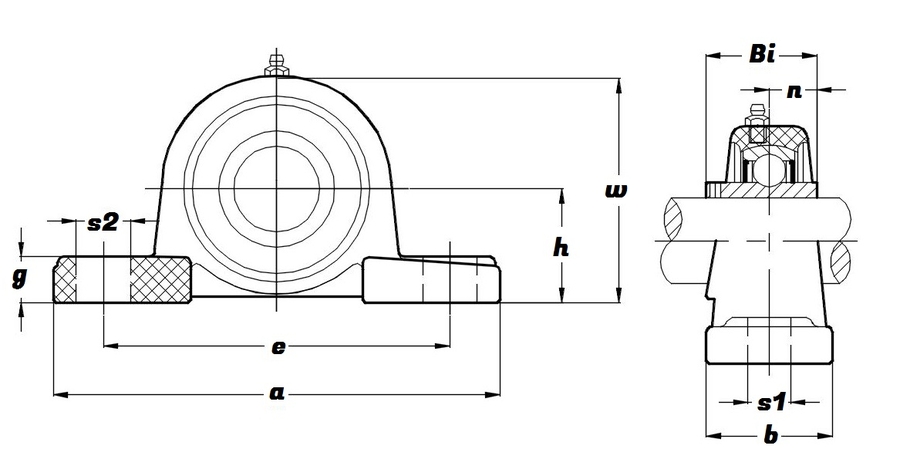

Schematic for PPL 205 16 S/S N6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 1 inch bore - Select Range
a	140.5mm
b	38mm
Bi	34mm
e	105mm
g	14.5mm
h	36.5mm
KG	0.31
n	14.3mm
s1	11mm
S1	14mm
w	71mm
