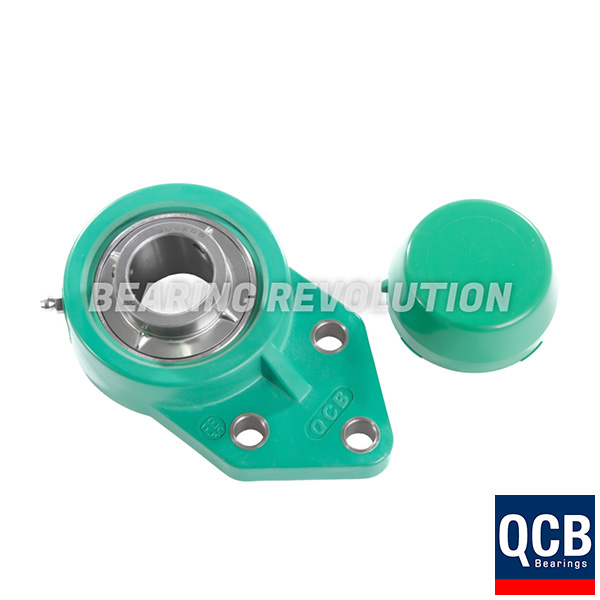

FBL 202 S/S N 6 GRN, GREEN THERMOPLASTIC FLANGE BRACKET UNIT WITH A 15MM BORE - SELECT RANGE
Metric UCFB type Green Thermoplastic Flange Bracket Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£85.14 (£102.17 inc VAT)
- 5 - 9£80.89 (£97.07 inc VAT)
- 10 +£76.63 (£91.96 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for FBL 202 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 15mm bore - Select Range | |
| Reference | FBL 202 S/S N 6 GRN |
| Brand | Select |
| Inside Diameter | 15mm |
| Bolt | M10 |
| Max Torque | 18Nm |
| Weight (KG) | 0.23 |

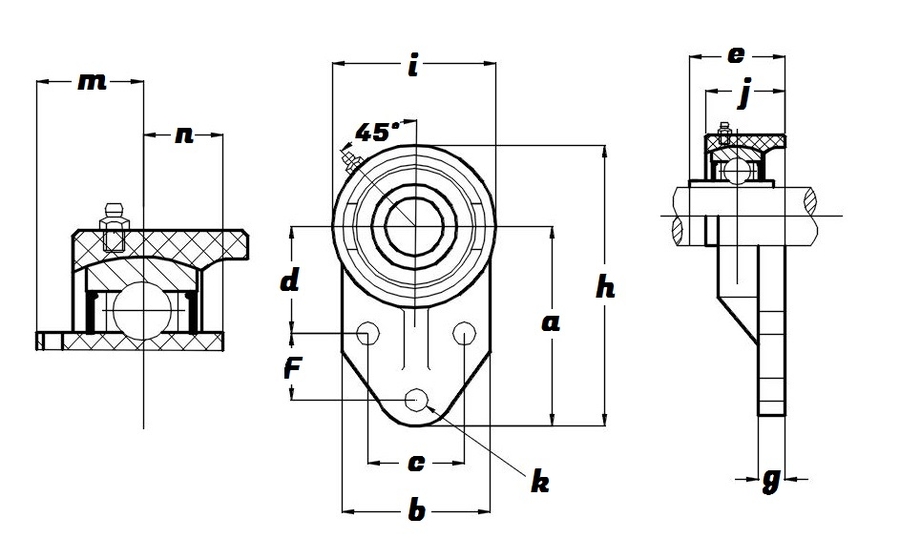

Schematic for FBL 202 S/S N 6 GRN, Green Thermoplastic Flange Bracket Unit with a 15mm bore - Select Range | |
| a | 76.2mm |
| b | 62mm |
| c | 38.1mm |
| d | 42.9mm |
| e | 33.7mm |
| f | 22.2mm |
| g | 11.4mm |
| h | 108mm |
| i | 63.5mm |
| j | 26.5mm |
| k | 10.7mm |
| KG | 0.23 |
| m | 18.3mm |
| n | 12.7mm |
