Please note photos are for illustration purposes only

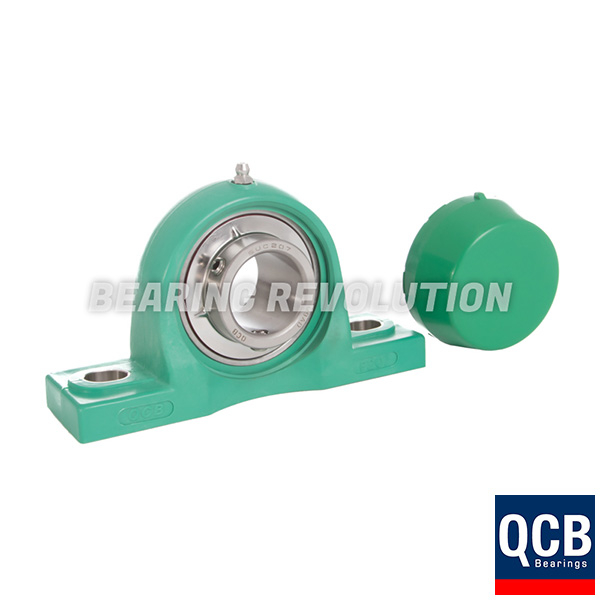

PPL 207 20 S/S N6 GRN, GREEN THERMOPLASTIC PILLOW BLOCK HOUSING UNIT WITH A 1.1/4 INCH BORE - SELECT RANGE

Name: PPL 207 20 S/S N6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 1.1/4 inch bore - Select Range
Brand: Select
Price: 141.56 GBP
Availability: InStock

BR Stock No. S-PPL 207 20 S/S N6 GRN | Brand: Select | Mfr. Part No. PPL 207 20 S/S N6 GRN

Imperial NP - UCP type Green Thermoplastic Pillow Block Housing Unit complete with Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£117.97 (£141.56 inc VAT)
5 - 9£112.07 (£134.48 inc VAT)
10 +£106.17 (£127.40 inc VAT)
Bulk Order PricesENQUIRE

PPL 207 20 S/S N6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 1.1/4 inch bore - Select Range Schematic

Specifications for PPL 207 20 S/S N6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 1.1/4 inch bore - Select Range
Reference	PPL 207 20 S/S N6 GRN
Brand	Select
Inside Diameter	1.1/4"
Bolt	M12
Max Torque	35Nm
Weight (KG)	0.76

Schematic for PPL 207 20 S/S N6 GRN, Green Thermoplastic Pillow Block Housing Unit with a 1.1/4 inch bore - Select Range
a	168mm
b	48mm
Bi	42.9mm
e	127mm
g	18mm
h	47.6mm
KG	0.76
n	17.5mm
s1	14mm
S1	18mm
w	94.5mm
