Please note photos are for illustration purposes only

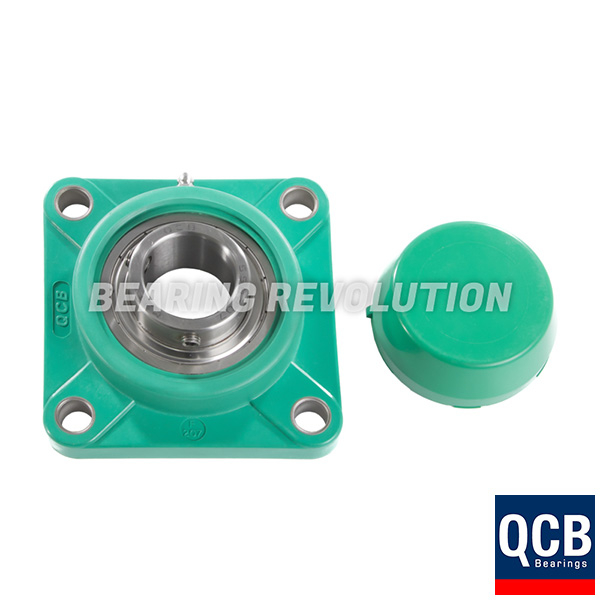

FPL 208 24 S/S N6A GRN, GREEN THERMOPLASTIC SQUARE FLANGE HOUSING UNIT WITH A 1.1/2 INCH BORE - SELECT RANGE

Name: FPL 208 24 S/S N6A GRN, Green Thermoplastic Square Flange Housing Unit with a 1.1/2 inch bore - Select Range
Brand: Select
Price: 169.48 GBP
Availability: InStock

BR Stock No. S-FPL 208 24 S/S N6A GRN | Brand: Select | Mfr. Part No. FPL 208 24 S/S N6A GRN

Imperial SF - UCF type Green Thermoplastic Square Flange Housing Unit with Flat Back Stainless Steel Insert filled with food grade grease from our Select range.

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£141.23 (£169.48 inc VAT)
5 - 9£134.16 (£160.99 inc VAT)
10 +£127.10 (£152.52 inc VAT)
Bulk Order PricesENQUIRE

FPL 208 24 S/S N6A GRN, Green Thermoplastic Square Flange Housing Unit with a 1.1/2 inch bore - Select Range Schematic

Specifications for FPL 208 24 S/S N6A GRN, Green Thermoplastic Square Flange Housing Unit with a 1.1/2 inch bore - Select Range
Reference	FPL 208 24 S/S N6A GRN
Brand	Select
Inside Diameter	1.1/2"
Bolt	M12
Max Torque	40Nm
Weight (KG)	0.97

Schematic for FPL 208 24 S/S N6A GRN, Green Thermoplastic Square Flange Housing Unit with a 1.1/2 inch bore - Select Range
a	130mm
Bi	49.2mm
e	102mm
g	17mm
i	23mm
KG	0.97
l	37.5mm
n	19mm
s	14mm
z	53.2mm
