Q 309

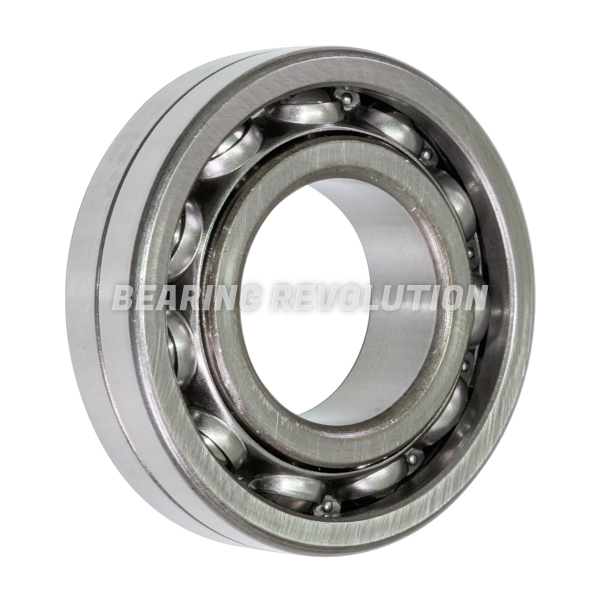

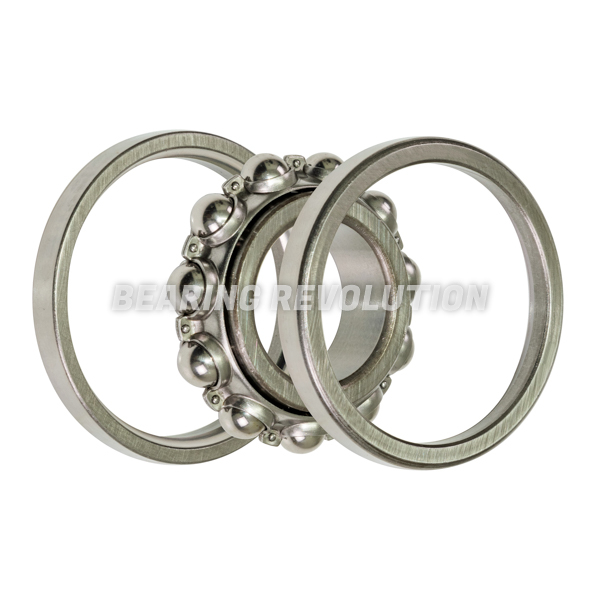

FOUR-POINT CONTACT BALL BEARING WITH A 45MM BORE - STEEL CAGE - BUDGET RANGE
Medium series four point angular contact ball bearing with a split outer race from our Budget range. 45mm ID, 100mm OD and 25mm width.
Also known as QB 45, QB 45
Our budget range is manufactured to International standards and represents great value for money.
Please use this form for enquiries and pricing.
Specifications for Q 309 | |
| Reference | Q 309 |
| Brand | Budget |
| Inside Diameter | 45mm |
| Outside Diameter | 100mm |
| Width | 25mm |
| Weight (KG) | 1.03 |

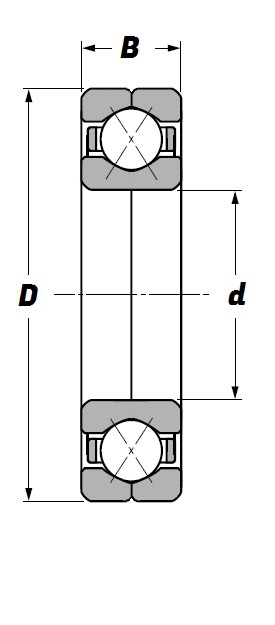

Schematic for Q 309 | |
| B | 25mm |
| d | 45mm |
| D | 100mm |
